L9352B-LF - STMicroelectronics

Description: Intelligent quad (2 x 5A/2 x 2.5A) low-side switch

Download L9352B-LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

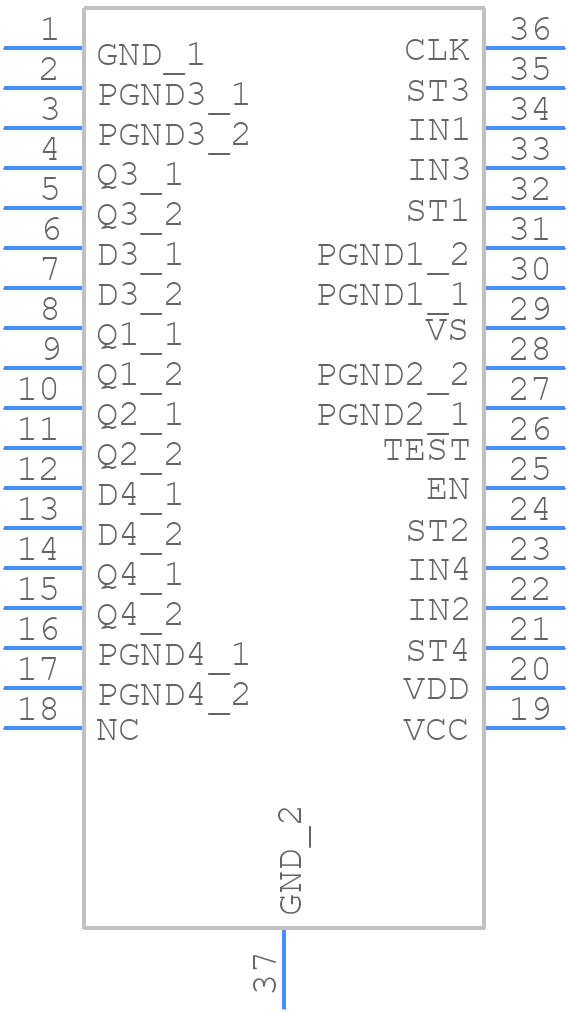

Symbol
L9352B-LF - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L9352B-LF - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO-36
click to zoom
3D Models
L9352B-LF - STMicroelectronics - 3D model - Small Outline Packages - PowerSO-36
click to zoom

L9352B-LF Details

  • Manufacturer Part Number:

    L9352B-LF

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.05

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Output Current Flow Direction:

    SOURCE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.6 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    30 µs

  • Turn-on Time:

    20 µs

  • Width:

    11 mm

L9352B-LF Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4571, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • STMicroelectronics provides a configuration tool, the L9352B-LF Configurator, which allows designers to select the desired configuration options, such as output voltage, switching frequency, and soft-start timing, and generates a configuration file that can be used to program the device.
  • The recommended components for the external compensation network are listed in the datasheet, but STMicroelectronics also provides a compensation network calculator tool that helps designers select the optimal component values based on their specific application requirements.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4572, which includes a step-by-step approach to identifying and resolving common issues, as well as tips for using oscilloscopes and other tools to debug the design.
  • Yes, STMicroelectronics provides guidelines for EMI/EMC design considerations in the application note AN4573, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference and ensure compliance with relevant standards.
