Part Image

L9474N - STMicroelectronics

Description: Alternator Voltage Regulator with rvc interface

Download L9474N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

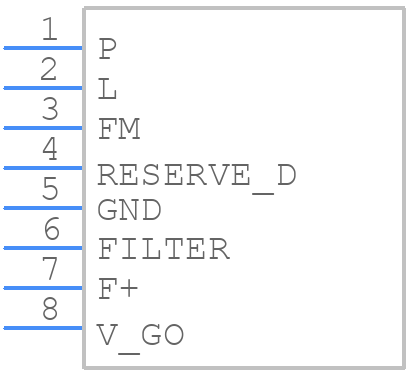

Symbol
L9474N - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L9474N - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - Multiwatt 8 (pin 5GND)
click to zoom
3D Models
L9474N - STMicroelectronics - 3D model - Transistor Outline, Vertical - Multiwatt 8 (pin 5GND)
click to zoom

L9474N Details

  • Manufacturer Part Number:

    L9474N

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MULTIWATT-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-XSFM-T8

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

L9474N Frequently Asked Questions (FAQs)

  • The L9474N can operate from -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • The L9474N requires a power-on reset (POR) signal to ensure proper initialization. A 10uF capacitor between VCC and GND, and a 1kΩ resistor between VCC and the POR pin can help achieve this.
  • To minimize electromagnetic interference (EMI) and ensure proper operation, it is recommended to follow a 4-layer PCB design with a solid ground plane, and to keep the L9474N away from high-current carrying traces and components.
  • Use an oscilloscope to monitor the input and output voltages, and check for any voltage drops or noise on the power lines. Also, verify that the input voltage is within the recommended range and that the device is properly cooled.
  • Yes, the L9474N is designed for high-reliability applications and meets various safety standards, including AEC-Q100 and IEC 61508. However, it is essential to follow proper design and testing procedures to ensure the device meets the specific requirements of the application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L9474N Overview

Use the download button to access the L9474N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L9474, or try a keyword search, such as Other Signal Circuits
