- Part Number L9679E
- Manufacturer STMicroelectronics
- Pin Count 48
- Part Category Integrated Circuit
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - L9966CB-TR
- Released Date Aug 27, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
L9679E Details
-
Manufacturer Part Number:
L9679E
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
TQFP-48
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
52 Weeks
-
Manufacturer:
STMicroelectronics
-
Consumer IC Type:
CONSUMER CIRCUIT
L9679E Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
-
The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and switching frequency. STMicroelectronics provides a list of recommended inductors in the datasheet, and also offers an inductor selection tool on their website to help with the selection process.
-
The maximum junction temperature of the L9679E is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C to ensure reliable operation and long-term reliability.
-
While the L9679E can operate up to 150°C, it's not recommended to use it in high-temperature environments above 125°C without proper thermal management and derating. STMicroelectronics provides thermal derating curves in the datasheet to help with this process.
-
STMicroelectronics provides a troubleshooting guide in the application note AN4553, which covers common issues and their solutions, such as output voltage regulation, efficiency optimization, and fault detection.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
L9679E Overview

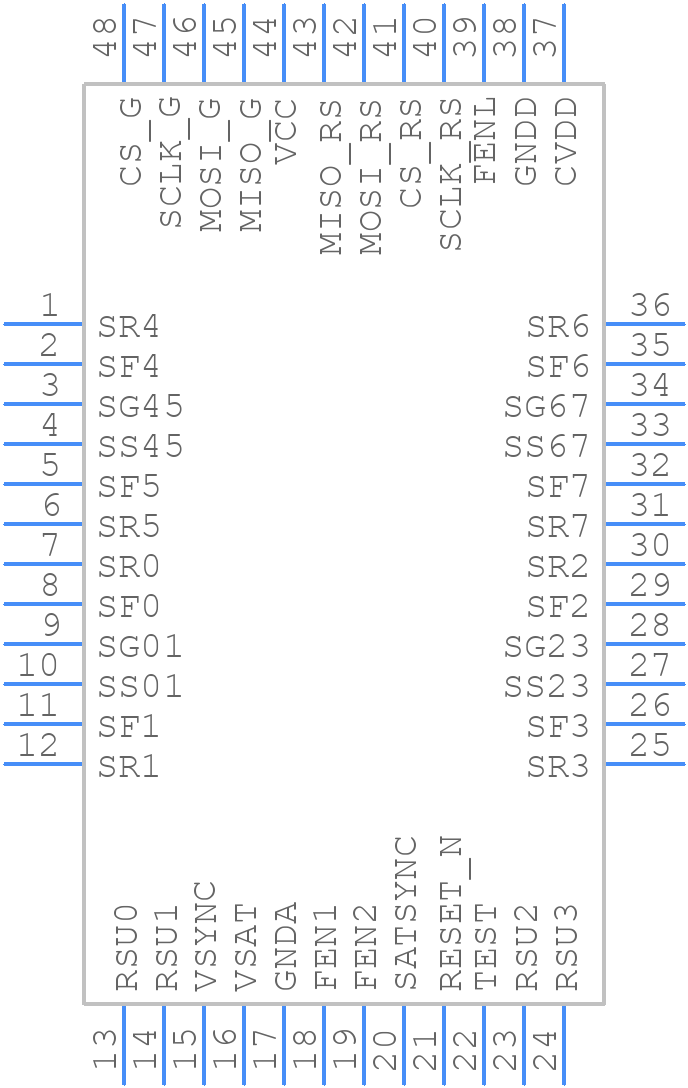

Use the download button to access the L9679E schematic symbol, PCB footprint, and 3D model.
