L9680 Frequently Asked Questions (FAQs)

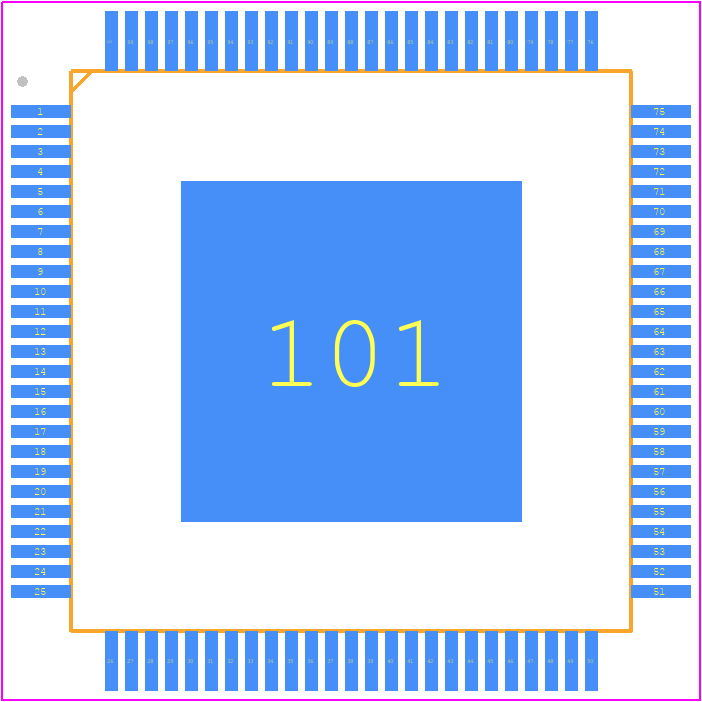

• What is the recommended PCB layout for the L9680 to ensure optimal performance?
  A good PCB layout for the L9680 involves keeping the power supply lines (VIN and VOUT) as short as possible, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
• How do I choose the right input and output capacitors for the L9680?
  The choice of input and output capacitors for the L9680 depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor.
• What is the maximum ambient temperature range for the L9680?
  The L9680 can operate in an ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance.
• How do I ensure the L9680 is stable and doesn't oscillate?
  To ensure the L9680 is stable and doesn't oscillate, it's essential to follow the recommended PCB layout guidelines, use the correct input and output capacitors, and ensure the input voltage is within the recommended range. Additionally, the device's output voltage should be monitored to prevent over-voltage or under-voltage conditions.
• Can I use the L9680 in a high-reliability application?
  Yes, the L9680 is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow the recommended design guidelines and testing procedures to ensure the device meets the specific application requirements.
