L9690-TR - STMicroelectronics

Description: Automotive 12 channels chip for advanced airbag applications

Download L9690-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
L9690-TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

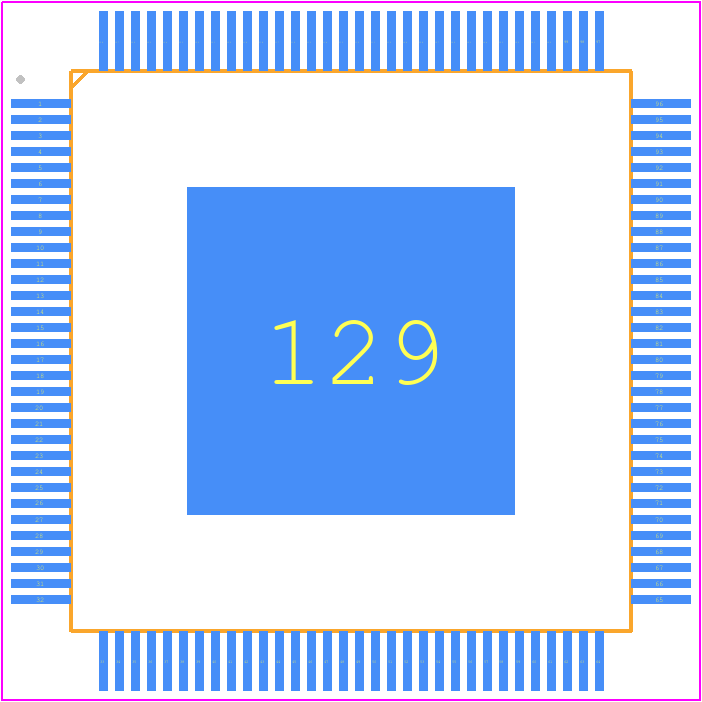

L9690-TR - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP 128 14x14x1.0
click to zoom
3D Models
L9690-TR - STMicroelectronics - 3D model - Quad Flat Packages - TQFP 128 14x14x1.0
click to zoom

L9690-TR Details

  • Manufacturer Part Number:

    L9690-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    STMicroelectronics

  • Analog IC - Other Type:

    AUTOMOTIVE AIRBAG SYSTEM

  • JESD-30 Code:

    S-PQFP-G128

  • Length:

    14 mm

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    QFP128,.64SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Screening Level:

    AEC-Q100, ASIL-D

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

L9690-TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The L9690-TR can be configured for high-voltage applications by using an external voltage regulator and adjusting the input voltage range. Refer to the application note AN4552 for detailed guidance on high-voltage configuration and component selection.
  • The L9690-TR has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (Tj) should not exceed 150°C. Ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • Yes, the L9690-TR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is designed to withstand harsh environmental conditions, making it suitable for use in demanding applications.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4551, which covers common issues, fault detection, and debugging techniques for the L9690-TR.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L9690-TR Overview

Use the download button to access the L9690-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L9690, or try a keyword search, such as Other Signal Circuits
