Part Image

L9820D013TR - STMicroelectronics

Description: Power Switch/Driver 1:1 300mA 6V ~ 25V -40°C ~ 85°C (TJ) 8-SOIC

Download L9820D013TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

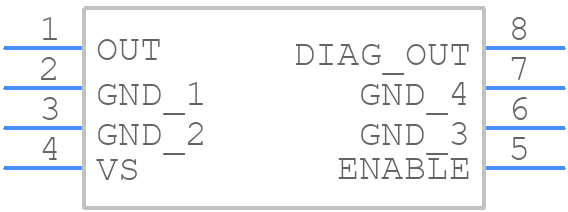

Symbol
L9820D013TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L9820D013TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO8
click to zoom
3D Models
L9820D013TR - STMicroelectronics - 3D model - Small Outline Packages - SO8
click to zoom

L9820D013TR Details

  • Manufacturer Part Number:

    L9820D013TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SO-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    OVER CURRENT; OVER VOLTAGE; THERMAL

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    25 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    14.4 V

  • Surface Mount:

    YES

  • Technology:

    BCD

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

L9820D013TR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure efficient heat dissipation.
  • To ensure reliable operation, it's essential to follow the recommended operating conditions, including voltage, current, and temperature ranges. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a stable temperature.
  • Monitor the output voltage, current, and temperature to detect potential faults. Implement over-voltage protection (OVP), under-voltage protection (UVP), and over-temperature protection (OTP) to prevent damage to the device and ensure safe operation.
  • Yes, the L9820D013TR is suitable for high-reliability and safety-critical applications. However, it's essential to follow STMicroelectronics' guidelines for design, testing, and validation to ensure the device meets the required safety and reliability standards.
  • Implement a multi-layer PCB with a solid ground plane, use EMI filters, and consider shielding techniques such as metal cans or EMI-absorbing materials to minimize electromagnetic interference.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L9820D013TR Overview

Use the download button to access the L9820D013TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L9820, or try a keyword search, such as Peripheral Drivers
