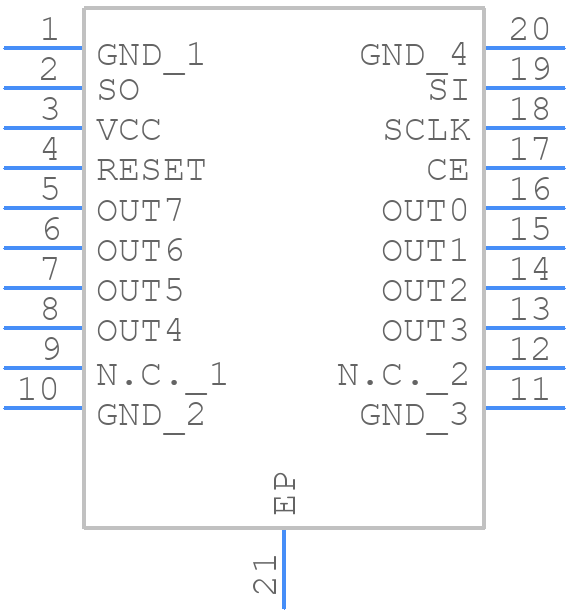

L9822EPD - STMicroelectronics

L9822EPD Details

• Manufacturer Part Number:

  L9822EPD

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Package Description:

  ROHS COMPLIANT, MO-166, SOP-20

• Pin Count:

  20

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  6.05

• Built-in Protections:

  TRANSIENT; OVER CURRENT

• Driver Number of Bits:

  8

• Interface IC Type:

  SIPO BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e3

• Length:

  15.9 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current Flow Direction:

  SINK

• Output Current-Max:

  1 A

• Output Peak Current Limit-Nom:

  1.05 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP20,.56

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.6 mm

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  BCD

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Turn-off Time:

  10 µs

• Turn-on Time:

  10 µs

• Width:

  11 mm
