L9822EPD013TR - STMicroelectronics

Description: Octal serial solenoid driver

Download L9822EPD013TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

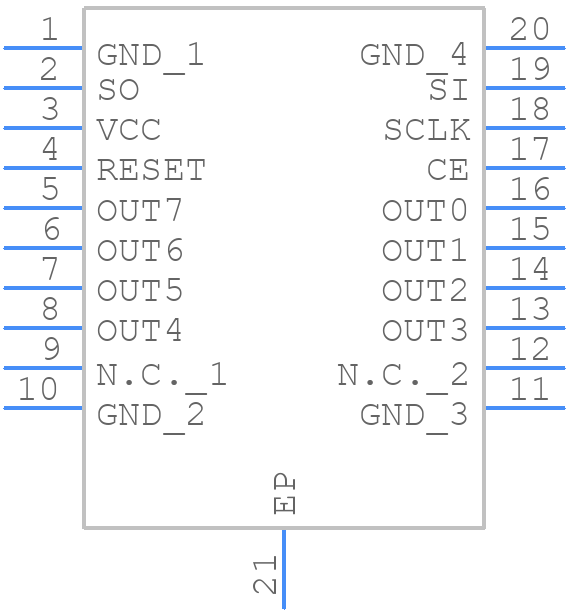

Symbol
L9822EPD013TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L9822EPD013TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO-20
click to zoom
3D Models
L9822EPD013TR - STMicroelectronics - 3D model - Small Outline Packages - PowerSO-20
click to zoom

L9822EPD013TR Details

  • Manufacturer Part Number:

    L9822EPD013TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    POWER, SO-20

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.05

  • Built-in Protections:

    TRANSIENT; OVER CURRENT

  • Interface IC Type:

    SIPO BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    1.05 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.6 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BCD

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    10 µs

  • Turn-on Time:

    10 µs

  • Width:

    11 mm

L9822EPD013TR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the device to ensure optimal thermal performance. A minimum of 2 oz copper thickness is recommended.
  • To ensure EMC, STMicroelectronics recommends following the guidelines in the application note AN2679, which provides guidance on PCB layout, component selection, and shielding. Additionally, the device should be placed at least 10 mm away from any metal objects or shields.
  • STMicroelectronics recommends using a 10 μF to 22 μF X7R or X5R ceramic capacitor with a voltage rating of 25 V or higher. The capacitor should be placed as close as possible to the VIN pin.
  • STMicroelectronics recommends using an external overvoltage protection (OVP) circuit, such as a voltage supervisor or a dedicated OVP IC, to protect the device from voltage transients and surges. The OVP circuit should be designed to trigger at a voltage level above the maximum recommended input voltage of 18 V.
  • The recommended operating temperature range for the L9822EPD013TR is -40°C to 125°C. However, the device can operate up to 150°C for short periods of time, but this may affect its reliability and lifespan.
