L9911P - STMicroelectronics

Description: Multifunction Smart Regulator with Lamp/Relay Diagnostic Driver

Download L9911P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

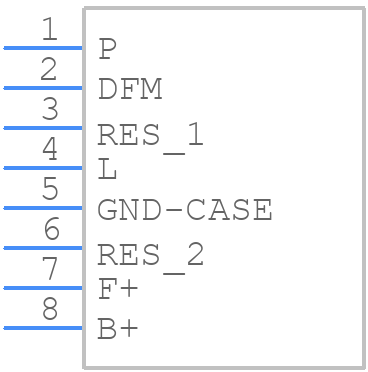

L9911P - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L9911P - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - Multiwatt 8 (pin 5GND)
click to zoom
3D Models
L9911P - STMicroelectronics - 3D model - Transistor Outline, Vertical - Multiwatt 8 (pin 5GND)
click to zoom

L9911P Details

  • Manufacturer Part Number:

    L9911P

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    ROHS COMPLIANT, MULTIWATT-8

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XSFM-T8

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SFM

  • Package Equivalence Code:

    SIP8,.1TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Supply Voltage-Nom (Vsup):

    12.5 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

L9911P Frequently Asked Questions (FAQs)

  • A good PCB layout for the L9911P involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should have a low ESR and be rated for the maximum input voltage. A ceramic capacitor with a value between 1uF to 10uF is recommended. The output capacitor should have a low ESR and be rated for the maximum output voltage. A ceramic capacitor with a value between 10uF to 22uF is recommended.
  • The L9911P can operate in an ambient temperature range of -40°C to 150°C. However, the junction temperature should not exceed 150°C.
  • To ensure stability, the L9911P requires a minimum output capacitance of 10uF. Additionally, the input and output capacitors should be placed close to the IC, and the PCB layout should be designed to minimize parasitic inductance and capacitance.
  • Yes, the L9911P is a high-reliability device that is suitable for use in automotive and industrial applications. It is AEC-Q100 qualified and has a high MTBF (Mean Time Between Failures) rating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L9911P Overview

Use the download button to access the L9911P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L9911, or try a keyword search, such as Motion Control Electronics
