L9911U - STMicroelectronics

Description: Power Management Specialized - PMIC Multi Smart Reg Lamp Relay Diag Driver

Download L9911U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

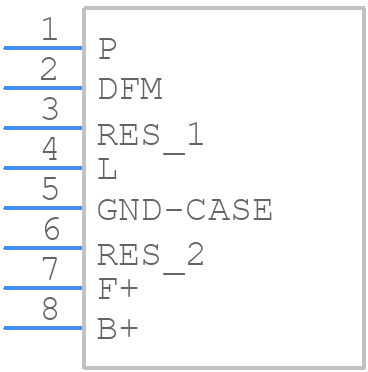

Symbol
L9911U - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L9911U - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - Multiwatt 8 (pin 5GND)
click to zoom
3D Models
L9911U - STMicroelectronics - 3D model - Transistor Outline, Vertical - Multiwatt 8 (pin 5GND)
click to zoom

L9911U Details

  • Manufacturer Part Number:

    L9911U

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Package Description:

    ROHS COMPLIANT, MULTIWATT-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XSFM-T8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SFM

  • Package Equivalence Code:

    SIP8,.1TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    25 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Supply Voltage-Nom (Vsup):

    12.5 V

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

L9911U Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4391, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and switching frequency. STMicroelectronics provides a list of recommended inductors in the datasheet, and also offers an inductor selection tool on their website to help engineers choose the right inductor for their design.
  • The maximum junction temperature of the L9911U is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C to ensure long-term reliability and prevent thermal shutdown.
  • The L9911U has a built-in overvoltage protection (OVP) feature that can be enabled by connecting a resistor between the OVP pin and the input voltage. The OVP threshold can be adjusted by selecting the appropriate resistor value, and the device will shut down if the input voltage exceeds the set threshold.
  • The minimum input voltage required for the L9911U to operate is 6.5V, as specified in the datasheet. However, the device can operate down to 5.5V with reduced performance and efficiency.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

L9911U Overview

Use the download button to access the L9911U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L9911, or try a keyword search, such as Motion Control Electronics

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
