L9914B - STMicroelectronics

Description: All silicon automotive voltage regulator

Download L9914B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

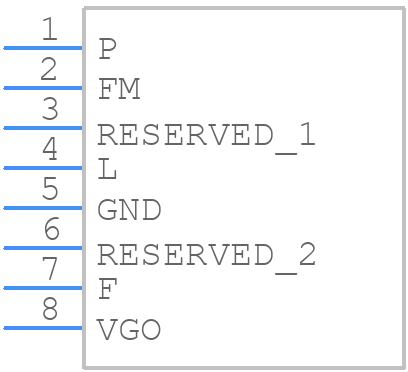

L9914B - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

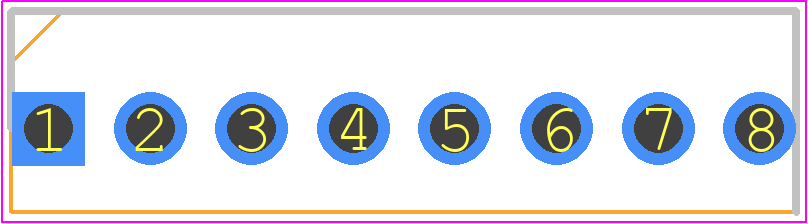

L9914B - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - Multiwatt 8
click to zoom
3D Models
L9914B - STMicroelectronics - 3D model - Transistor Outline, Vertical - Multiwatt 8
click to zoom

L9914B Details

  • Manufacturer Part Number:

    L9914B

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MULTIWATT-8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-XSFM-T8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Packing Method:

    TUBE

  • Screening Level:

    AEC-Q100

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

L9914B Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4391, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The selection of the inductor depends on the specific application requirements, such as the output voltage, current, and frequency. STMicroelectronics provides a list of recommended inductors in the datasheet, and also offers an inductor selection tool on their website to help designers choose the right component.
  • The maximum junction temperature of the L9914B is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C to ensure long-term reliability and prevent thermal shutdown.
  • While the L9914B can operate up to 150°C, it's not recommended for use in high-temperature environments above 125°C without proper thermal management and derating. STMicroelectronics provides guidelines for high-temperature operation in the application note AN4391.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4391, which covers common issues such as output voltage regulation, current limiting, and thermal shutdown. Additionally, designers can use oscilloscopes and other diagnostic tools to identify and debug issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L9914B Overview

Use the download button to access the L9914B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L9914, or try a keyword search, such as Other Signal Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
