L9930PD13TR - STMicroelectronics

Description: Dual Full Bridge

Download L9930PD13TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

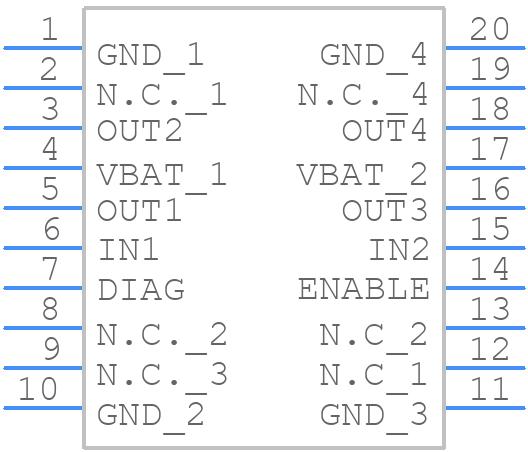

Symbol
L9930PD13TR - STMicroelectronics - PCB symbol
click to zoom

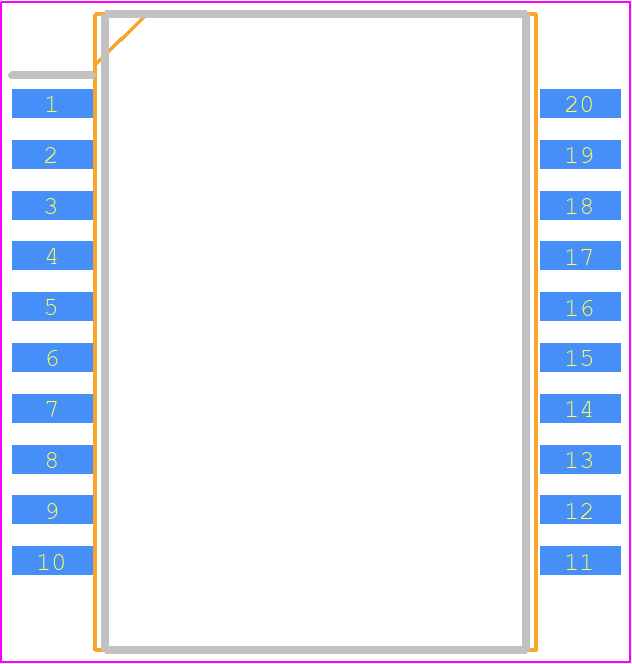

PCB Footprints
L9930PD13TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO-20
click to zoom
3D Models
L9930PD13TR - STMicroelectronics - 3D model - Small Outline Packages - PowerSO-20
click to zoom

L9930PD13TR Details

  • Manufacturer Part Number:

    L9930PD13TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    POWER, SO-20

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    FULL BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    0.38 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    ZIP11(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.6 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    50 µs

  • Turn-on Time:

    50 µs

  • Width:

    11 mm

L9930PD13TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • STMicroelectronics provides a configuration tool, L9930 Configurator, which allows designers to easily configure the device for their specific application, including setting voltage and current limits, enabling/disabling features, and generating configuration files.
  • STMicroelectronics provides a list of recommended components in the datasheet, including capacitor values and types, resistor values, and inductor values, to ensure proper operation and minimize noise and oscillations.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4554, which includes step-by-step procedures for identifying and resolving common issues, including overvoltage and overcurrent protection trips, and provides guidance on how to use the device's diagnostic features.
  • STMicroelectronics provides thermal design guidelines in the application note AN4555, which includes information on thermal resistance, junction temperature, and heat sink design, to ensure reliable operation in high-power applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L9930PD13TR Overview

Use the download button to access the L9930PD13TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L9930, or try a keyword search, such as MOSFET Drivers
