- Part Number L9951XP
- Manufacturer STMicroelectronics
- Pin Count 37
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PowerSSO-36---
- Released Date Aug 28, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
L9951XP Details
-
Manufacturer Part Number:
L9951XP
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Part Package Code:
SSOP
-
Package Description:
ROHS COMPLIANT, SSOP-36
-
Pin Count:
36
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
52 Weeks
-
Manufacturer:
STMicroelectronics
L9951XP Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN4395, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
-
The L9951XP is a flexible device that can be configured for different motor types through the use of external resistors and capacitors. The application note AN4395 provides guidance on how to select the correct components for a specific motor type, and the device's datasheet provides a detailed description of the configuration options.
-
The L9951XP is rated for operation from -40°C to 150°C, but the maximum operating temperature range may vary depending on the specific application and the device's power dissipation. It's recommended to consult the datasheet and application notes for more information on thermal management and derating.
-
STMicroelectronics provides a troubleshooting guide in the application note AN4395, which covers common issues and their solutions. Additionally, the device's datasheet provides a detailed description of the device's behavior and fault detection mechanisms, which can be used to diagnose and troubleshoot issues.
-
The L9951XP is designed to meet the requirements of safety-critical applications, such as those found in automotive and industrial systems. However, it's essential to consult the device's datasheet and application notes to ensure that the device is used within its specified operating conditions and that all necessary safety precautions are taken.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
L9951XP Overview

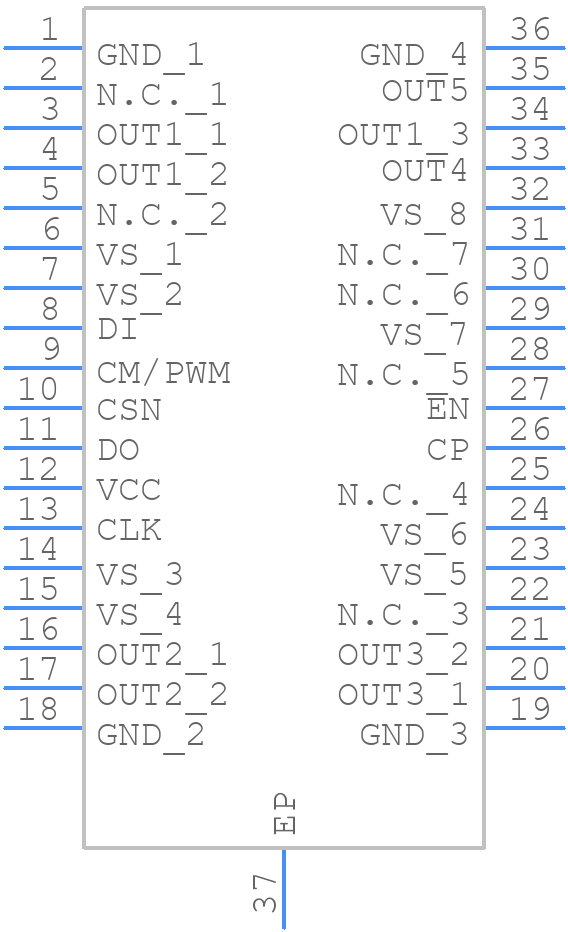

Use the download button to access the L9951XP schematic symbol, PCB footprint, and 3D model.
