L9952GXPTR - STMicroelectronics

Description: Power Management IC 6V to 18V Automotive 36-Pin PowerSSO T/R / IC PWR MANAGEMENT SYST PWRSSO36

Download L9952GXPTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

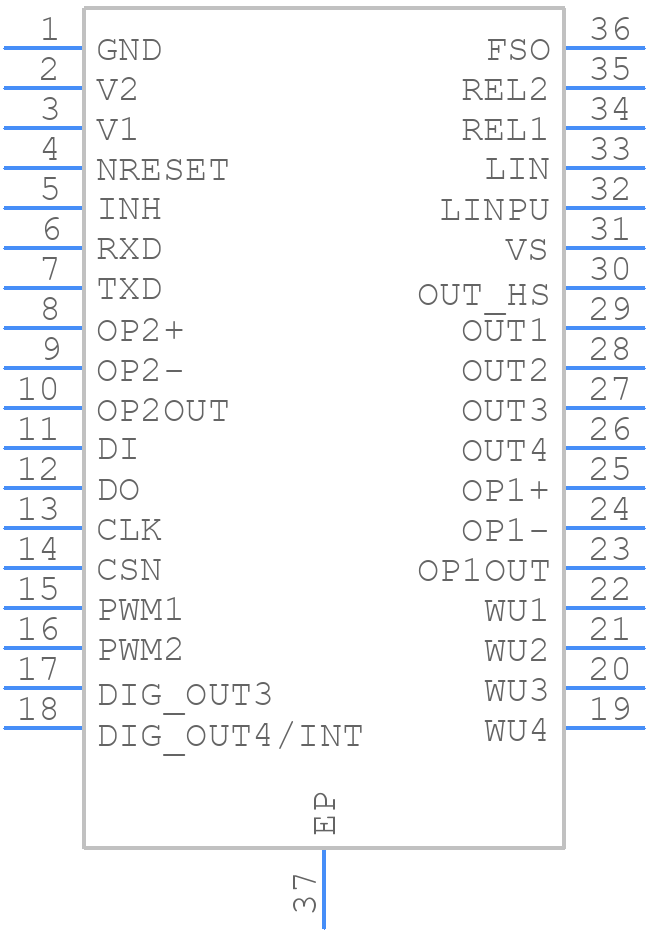

Symbol
L9952GXPTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L9952GXPTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - L9952GXPTR
click to zoom
3D Models
L9952GXPTR - STMicroelectronics - 3D model - Small Outline Packages - L9952GXPTR
click to zoom

L9952GXPTR Details

  • Manufacturer Part Number:

    L9952GXPTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SSO-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.47 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

L9952GXPTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the L9952GXPTR involves keeping the power supply lines (VIN and VOUT) as short as possible, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The choice of input and output capacitors for the L9952GXPTR depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor.
  • The L9952GXPTR can operate in an ambient temperature range of -40°C to 150°C. However, the maximum junction temperature (TJ) should not exceed 150°C.
  • To ensure proper thermal management, the L9952GXPTR should be mounted on a heat sink or a metal pad on the PCB. The heat sink should have a thermal resistance of less than 10°C/W. Additionally, the PCB should be designed to allow for good airflow around the IC.
  • The recommended input voltage range for the L9952GXPTR is 4.5V to 18V. However, the IC can operate with input voltages as low as 3.5V, but with reduced performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L9952GXPTR Overview

Use the download button to access the L9952GXPTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L9952, or try a keyword search, such as Power Management Circuits
