L9958TR - STMicroelectronics

Description: SPI Controlled H-Bridge 4.5-5.5V 20-PowerSOIC -40°C ~ 150°C

Download L9958TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

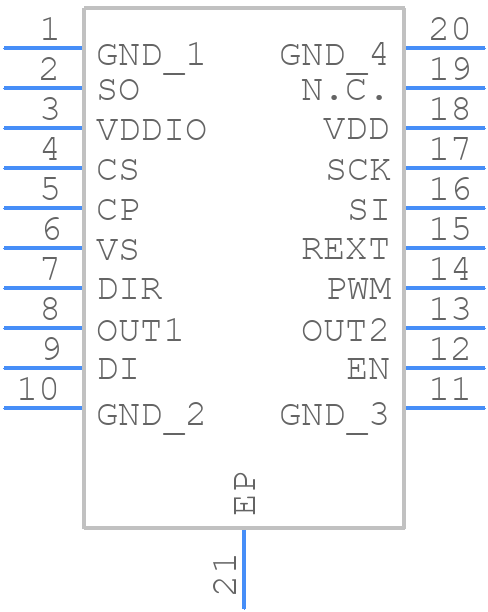

L9958TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L9958TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO20
click to zoom
3D Models
L9958TR - STMicroelectronics - 3D model - Small Outline Packages - PowerSO20
click to zoom

L9958TR Details

  • Manufacturer Part Number:

    L9958TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    5 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

L9958TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4395, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The L9958TR is a flexible device that can be configured for different motor types through the use of external resistors and capacitors. The configuration depends on the motor type, such as stepper, brushless DC, or DC motor. Refer to the application note AN4395 for specific configuration examples.
  • The L9958TR has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
  • Yes, the L9958TR can operate with a voltage supply between 6V and 24V, but the recommended operating voltage is 12V. However, the device's performance and thermal characteristics may vary depending on the supply voltage. Consult the datasheet and application notes for specific guidance.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4395, which covers common issues and their possible causes. Additionally, the device has built-in diagnostic features, such as overcurrent and overtemperature protection, that can help identify the root cause of the issue.
