Part Image

L9958XPTR - STMicroelectronics

Description: Bipolar Motor Driver CMOS SPI PowerSSO-24, 8.6A, 4.5V ~ 5.5V, -40°C ~ 150°C

Download L9958XPTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

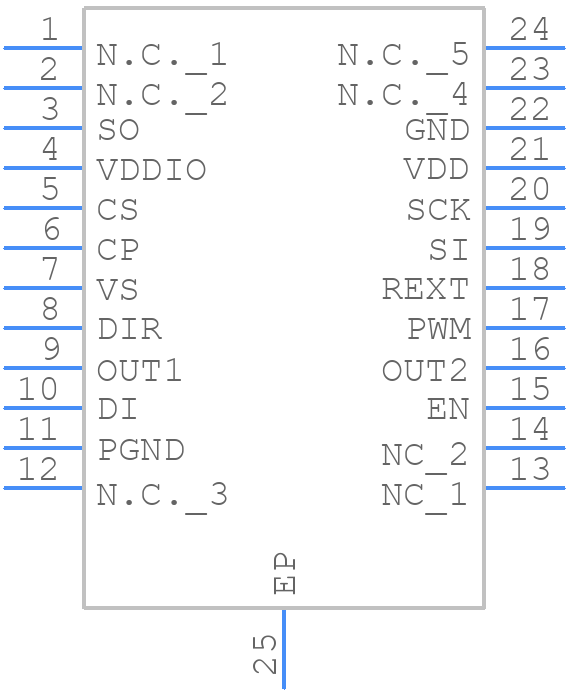

Symbol
L9958XPTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L9958XPTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-24
click to zoom
3D Models
L9958XPTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-24
click to zoom

L9958XPTR Details

  • Manufacturer Part Number:

    L9958XPTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP24,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    5 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

L9958XPTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the L9958XPTR involves keeping the power traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the IC. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The inductor value for the L9958XPTR depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor value calculation formula provided in the datasheet, and then adjust based on the specific application requirements.
  • The L9958XPTR is rated for an ambient temperature range of -40°C to 150°C, but the maximum operating temperature range depends on the specific application and the thermal design of the system.
  • Proper thermal management for the L9958XPTR involves using a heat sink, applying thermal interface material, and ensuring good airflow around the IC. The thermal design should be validated through thermal simulations and testing.
  • Key considerations for EMI filtering with the L9958XPTR include using a common-mode choke, adding X-capacitors, and using a shielded enclosure. The EMI filter design should be optimized for the specific application and frequency range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L9958XPTR Overview

Use the download button to access the L9958XPTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L9958, or try a keyword search, such as Motion Control Electronics
