L9963T-TR - STMicroelectronics

Description: Automotive general purpose SPI to isolated SPI transceiver

Download L9963T-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

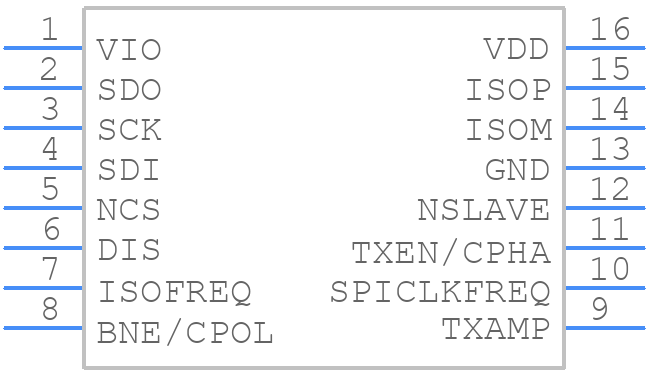

Symbol
L9963T-TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L9963T-TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO16N (10x4x1.25 mm)
click to zoom
3D Models
L9963T-TR - STMicroelectronics - 3D model - Small Outline Packages - SO16N (10x4x1.25 mm)
click to zoom

L9963T-TR Details

  • Manufacturer Part Number:

    L9963T-TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    STMicroelectronics

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

L9963T-TR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the device to ensure optimal thermal performance. A minimum of 2 oz copper thickness is recommended.
  • STMicroelectronics provides a configuration tool that allows you to customize the device's settings for your specific application. You can also refer to the application notes and user manuals provided by STMicroelectronics for guidance.
  • STMicroelectronics recommends using X7R or X5R ceramic capacitors with a voltage rating of 10V or higher for the input and output capacitors. The recommended capacitance values are 10uF to 22uF for the input capacitor and 10uF to 47uF for the output capacitor.
  • STMicroelectronics provides a troubleshooting guide in the datasheet and application notes. You can also use oscilloscopes and thermal imaging cameras to diagnose issues. Additionally, ensure that the device is properly soldered and that the PCB layout is correct.
  • The L9963T-TR has a maximum junction temperature of 150°C. Ensure that the device is properly mounted on a heat sink, and that the PCB layout allows for good airflow. You can also use thermal interface materials to improve heat transfer.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L9963T-TR Overview

Use the download button to access the L9963T-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L9963, or try a keyword search, such as Other Interface ICs
