- Part Number L9997ND
- Manufacturer STMicroelectronics
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO-20_2022
- Released Date Aug 28, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
L9997ND Details
-
Manufacturer Part Number:
L9997ND
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Part Package Code:
SOIC
-
Package Description:
SO-20
-
Pin Count:
20
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
1980-01-04
-
Manufacturer:
STMicroelectronics
L9997ND Frequently Asked Questions (FAQs)
-
A good PCB layout for the L9997ND involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
The choice of input and output capacitors for the L9997ND depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor.
-
The L9997ND can operate in an ambient temperature range of -40°C to 150°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
-
To ensure the L9997ND is properly configured, refer to the datasheet and application notes provided by STMicroelectronics. It's also recommended to use the device's evaluation board or a similar reference design to test and validate the configuration before implementing it in a custom design.
-
To ensure EMI and EMC compliance when using the L9997ND, it's essential to follow proper PCB layout and design practices, such as using a shielded enclosure, minimizing loop areas, and using EMI filters. Additionally, the device's switching frequency and output voltage should be carefully selected to minimize electromagnetic interference.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
L9997ND Overview

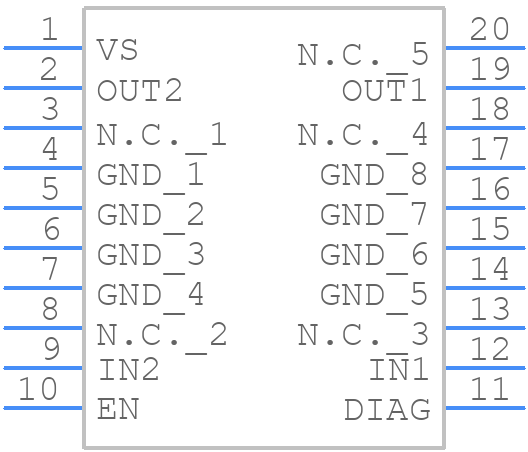

Use the download button to access the L9997ND schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L9997,
or try a keyword search, such as Peripheral Drivers
