L99ASC03GTR - STMicroelectronics

Description: Motor / Motion / Ignition Controllers & Drivers Brushless/Sensorless 3-phase motor pre-driver for automotive applications

Download L99ASC03GTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

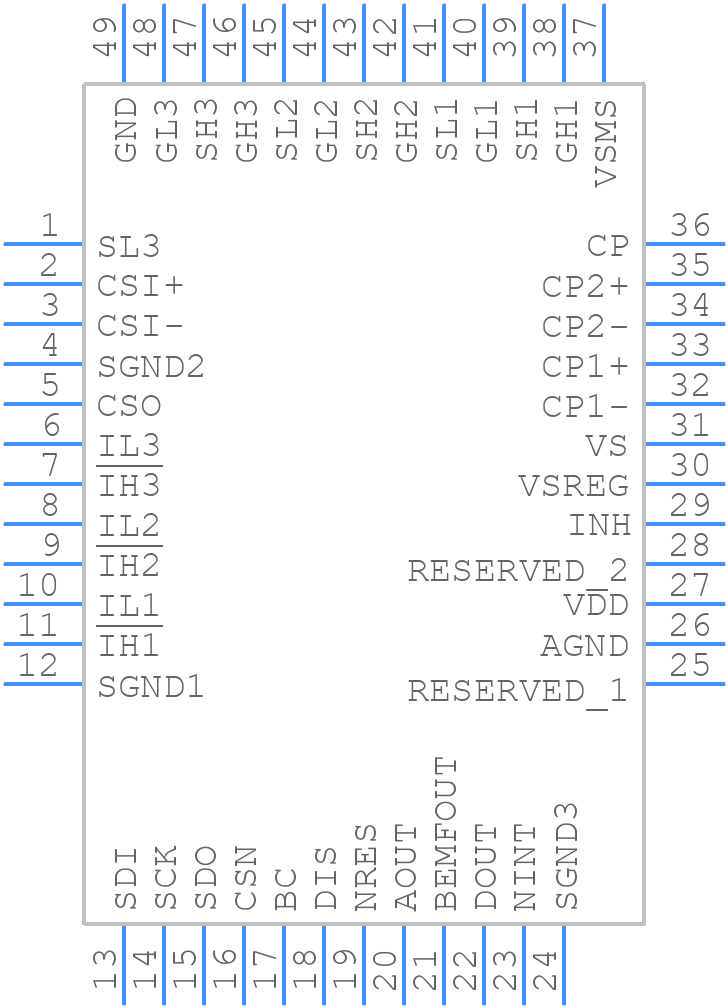

L99ASC03GTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99ASC03GTR - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - L99ASC03GTR
click to zoom
3D Models
L99ASC03GTR - STMicroelectronics - 3D model - Quad Flat Packages - L99ASC03GTR
click to zoom

L99ASC03GTR Details

  • Manufacturer Part Number:

    L99ASC03GTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.7

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Output Current-Max:

    0.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

L99ASC03GTR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a metal shield around the device, and ensure that the PCB layout is designed to minimize radiation. Also, use a common mode choke and a ferrite bead in the power supply lines to reduce electromagnetic interference (EMI).
  • The L99ASC03GTR can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • Use the STMicroelectronics-provided software development kit (SDK) and the Serial Wire Debug (SWD) interface to program the device's flash memory.
  • Power up the device in the following sequence: VDD, VDDA, and then VREF. Ensure that VDDA is powered up before VREF.
