L99CL01XP - STMicroelectronics

Description: 8 channel high-side LED driver for automotive applications

Download L99CL01XP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

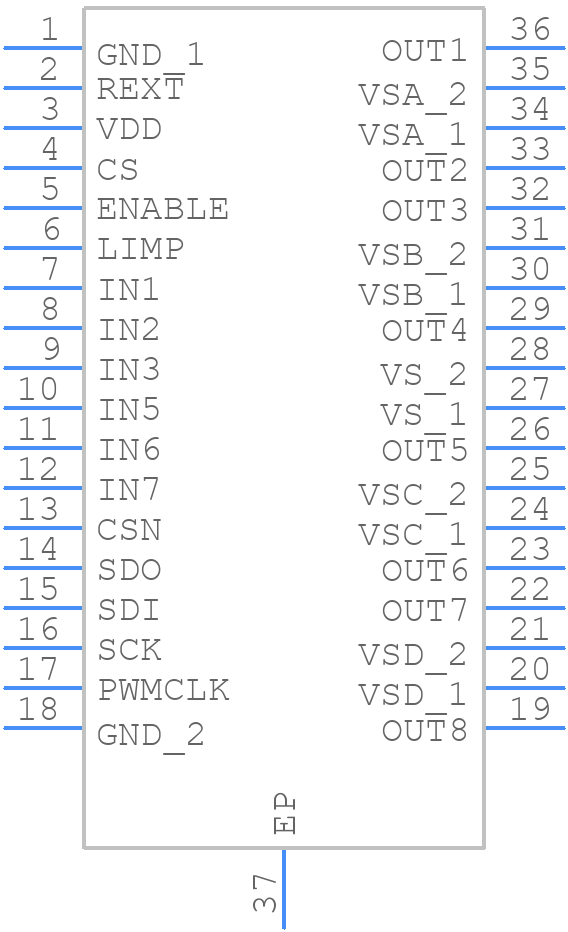

Symbol
L99CL01XP - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99CL01XP - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - Power SSO-36
click to zoom
3D Models
L99CL01XP - STMicroelectronics - 3D model - Small Outline Packages - Power SSO-36
click to zoom

L99CL01XP Details

  • Manufacturer Part Number:

    L99CL01XP

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    POWERSSO-36

  • Manufacturer Package Code:

    PowerSSO 36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    16

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.45 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max:

    24 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Bright Tin (Sn) - reflowed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

  • fmax-Min:

    0.1024 MHz

L99CL01XP Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The L99CL01XP can be configured for different LIN bus speeds by adjusting the values of the external resistors RXT and RXP, as described in the datasheet. Additionally, the device can be configured through the SPI interface to select the desired baud rate.
  • The maximum cable length supported by the L99CL01XP depends on the specific application and the characteristics of the cable. However, as a general guideline, STMicroelectronics recommends a maximum cable length of 40 meters for a typical LIN bus application.
  • The L99CL01XP has a built-in watchdog timer that can be enabled and configured through the SPI interface. The watchdog timer can be used to monitor the system's activity and reset the device in case of a fault or timeout.
  • The L99CL01XP is a high-power device that requires proper thermal management to ensure reliable operation. STMicroelectronics recommends using a heat sink and following the thermal design guidelines provided in the datasheet and application notes to ensure optimal thermal performance.
