L99DZ70XP - STMicroelectronics

Description: Door Actuator PMIC PowerSSO-36 EPD

Download L99DZ70XP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

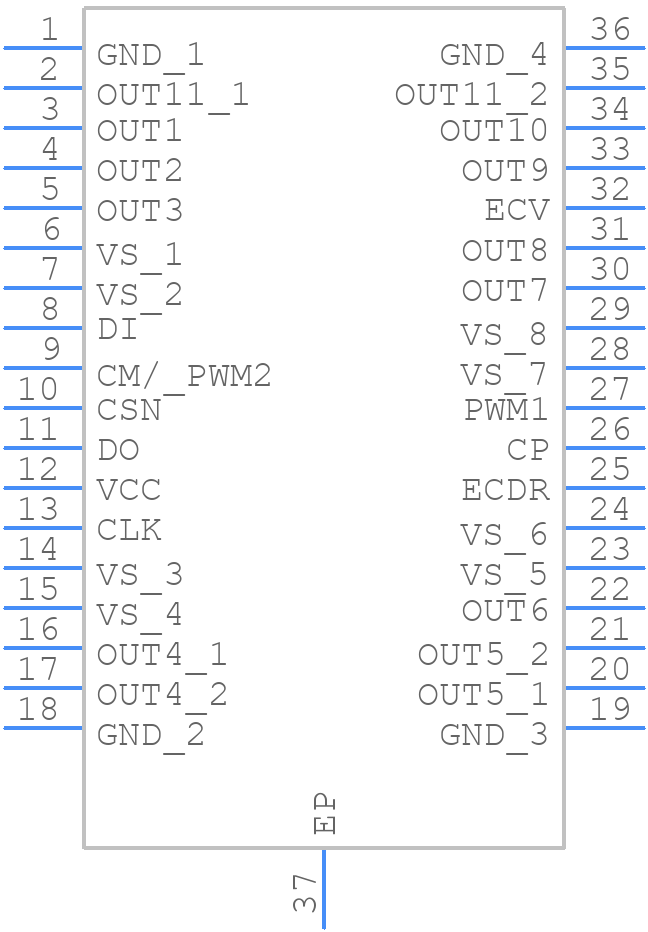

Symbol
L99DZ70XP - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99DZ70XP - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36---
click to zoom
3D Models
L99DZ70XP - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36---
click to zoom

L99DZ70XP Details

  • Manufacturer Part Number:

    L99DZ70XP

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSO-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Analog IC - Other Type:

    DOOR MODULE DRIVERS

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.45 mm

  • Supply Current-Max (Isup):

    20 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Supply Voltage-Nom (Vsup):

    8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

L99DZ70XP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the decoupling capacitors should be placed as close as possible to the device.
  • The L99DZ70XP requires a stable power supply with a voltage range of 5.5V to 40V. A 10uF decoupling capacitor should be connected between the VCC pin and the GND pin, and a 100nF decoupling capacitor should be connected between the VCC pin and the GND pin for each VCC pin.
  • The L99DZ70XP can handle a maximum current of 1.5A per channel, but the total current should not exceed 3A. The device also has a thermal shutdown feature that turns off the device if the junction temperature exceeds 150°C.
  • The L99DZ70XP can be configured for different motor types by setting the appropriate registers. For example, for a 3-phase brushless DC motor, the device should be configured in 3-phase mode, and the commutation sequence should be set accordingly.
  • The OTP memory in the L99DZ70XP is used to store the device configuration, such as the motor type, commutation sequence, and other parameters. The OTP memory can be programmed once and then locked to prevent accidental changes.
