L99MD01XPTR - STMicroelectronics

Description: Octal half-bridge driver with SPI control for automotive application

Download L99MD01XPTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

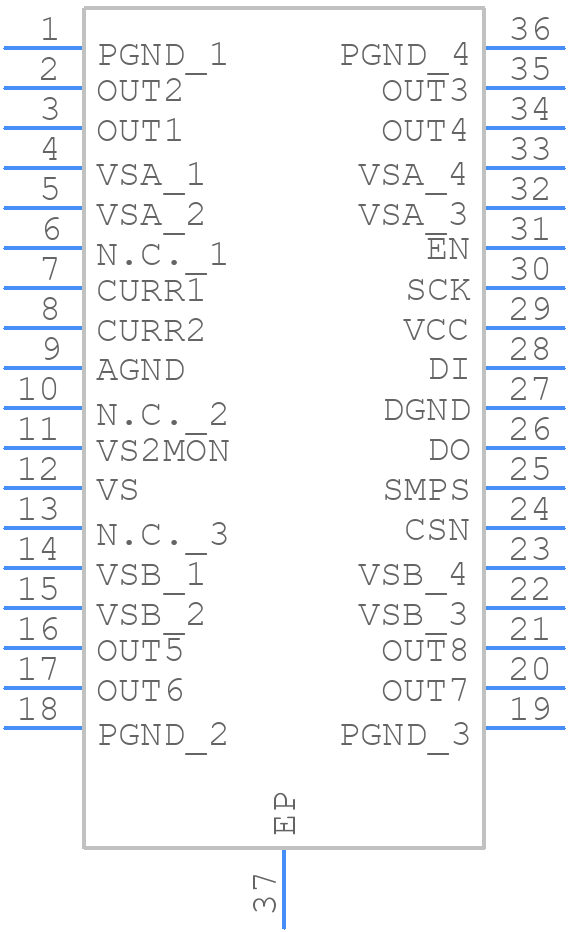

Symbol
L99MD01XPTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99MD01XPTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36---
click to zoom
3D Models
L99MD01XPTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36---
click to zoom

L99MD01XPTR Details

  • Manufacturer Part Number:

    L99MD01XPTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

L99MD01XPTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management.
  • The L99MD01XPTR can be configured for different vehicle protocols such as SAE J1850, ISO 9141-2, and ISO 15765-4 using the STMicroelectronics software development kit (SDK) and the device's registers.
  • The maximum cable length supported by the L99MD01XPTR depends on the specific vehicle protocol and the cable characteristics, but as a general rule, it is recommended to keep the cable length below 10 meters to ensure reliable communication.
  • To troubleshoot communication issues with the L99MD01XPTR, check the device's configuration, verify the cable connections, and use a logic analyzer or oscilloscope to monitor the bus signals. STMicroelectronics also provides a troubleshooting guide in the device's datasheet.
  • Yes, the L99MD01XPTR is designed to meet the requirements of automotive safety standards such as ISO 26262 and IEC 61508, and it has been certified by STMicroelectronics to meet these standards.
