L99MD02XP - STMicroelectronics

Description: Hexa half-bridge driver with SPI control for automotive applications

Download L99MD02XP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

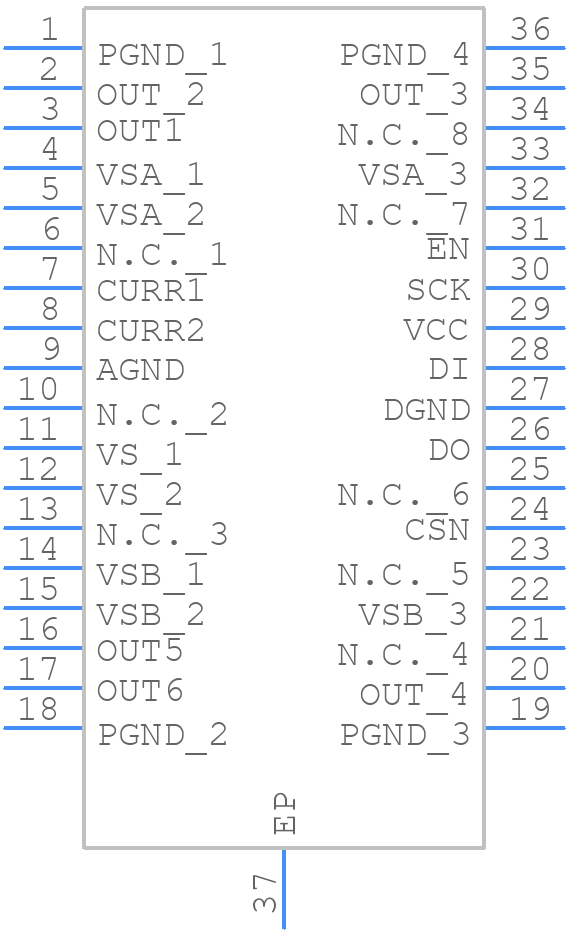

Symbol
L99MD02XP - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99MD02XP - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO 36(H=2.45mm)
click to zoom
3D Models
L99MD02XP - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO 36(H=2.45mm)
click to zoom

L99MD02XP Details

  • Manufacturer Part Number:

    L99MD02XP

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

L99MD02XP Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4233, which includes guidelines for thermal vias, copper pour, and component placement to ensure optimal thermal performance.
  • To minimize noise, ensure a clean power supply, use a low-ESR capacitor, and keep the device away from noise sources. Additionally, consider using a shielded inductor and a common-mode choke to reduce electromagnetic interference (EMI).
  • The maximum allowed voltage on the EN pin is 5.5V. Exceeding this voltage may damage the device. It's recommended to use a voltage regulator or a level shifter to ensure the EN pin voltage remains within the specified limit.
  • The L99MD02XP is rated for operation up to 150°C. However, the device's performance and reliability may degrade above 125°C. If your application requires operation above 125°C, consider using a heat sink or a thermally enhanced package.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4233. The guide covers common issues such as overheating, and provides guidance on how to identify and resolve problems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L99MD02XP Overview

Use the download button to access the L99MD02XP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L99MD, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
