L99MM70XPTR - STMicroelectronics

Description: Integrated microprocessor driven device intended for LIN controlled exterior mirrors

Download L99MM70XPTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

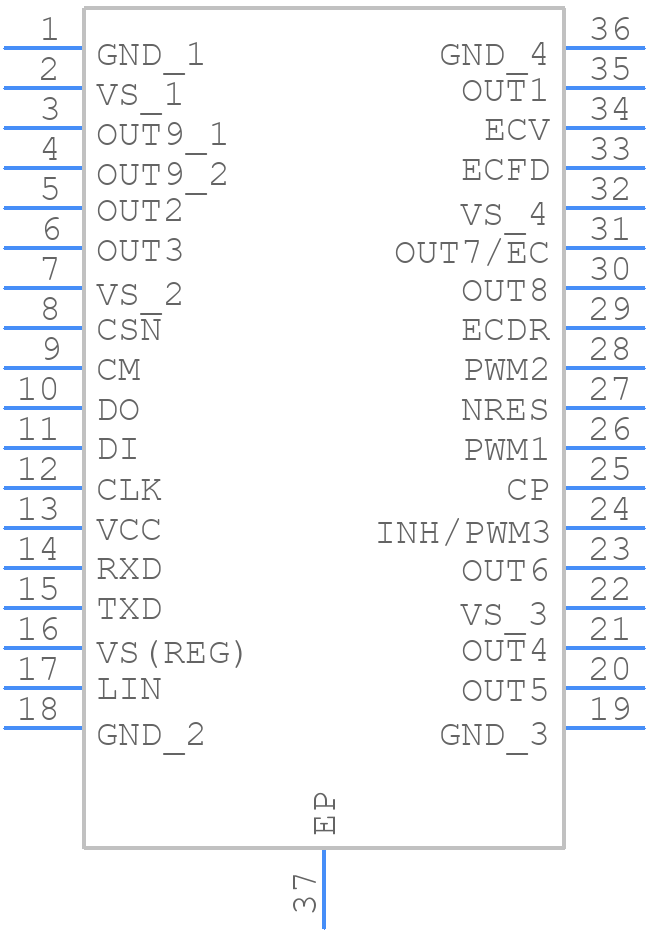

Symbol
L99MM70XPTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99MM70XPTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO 36(H=2.45mm)
click to zoom
3D Models
L99MM70XPTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO 36(H=2.45mm)
click to zoom

L99MM70XPTR Details

  • Manufacturer Part Number:

    L99MM70XPTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    STMicroelectronics

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    13.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

L99MM70XPTR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Use a reliable communication protocol such as SPI or I2C, and ensure that the clock frequency and data transmission rates are within the specified limits. Also, use a pull-up resistor on the SDA line and a pull-down resistor on the SCL line.
  • The maximum operating temperature range for the L99MM70XPTR is -40°C to 125°C. However, the device can operate up to 150°C for short periods of time, but this may affect its reliability and lifespan.
  • The POR and BOR features can be handled by using an external reset circuit or by using the internal reset generator. The internal reset generator can be enabled by setting the RSTEN bit in the Control Register. The POR and BOR thresholds can be adjusted by programming the VPOR and VBOR registers.
  • A 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel, placed as close as possible to the device's power pins, are recommended for power supply decoupling. This helps to filter out noise and ensure stable operation.
