L99SD01TR-E - STMicroelectronics

Description: Integrated solenoid driver for automotive applications

Download L99SD01TR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

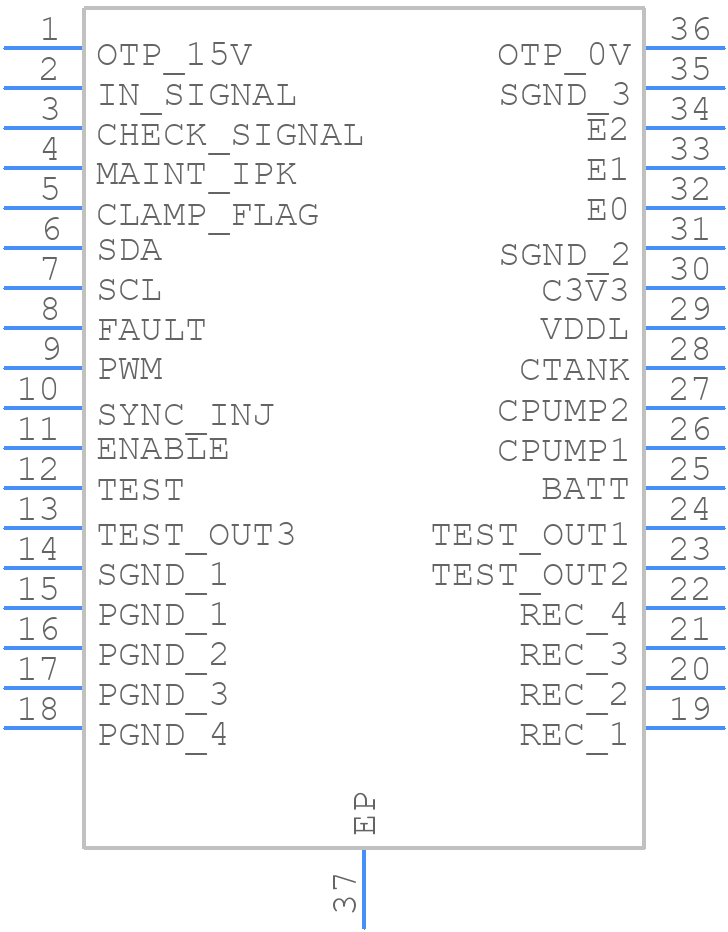

Symbol
L99SD01TR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99SD01TR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PSSO36 (slug ssup) paczzzkage outline
click to zoom
3D Models
L99SD01TR-E - STMicroelectronics - 3D model - Small Outline Packages - PSSO36 (slug ssup) paczzzkage outline
click to zoom

L99SD01TR-E Details

  • Manufacturer Part Number:

    L99SD01TR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SSOP-36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

L99SD01TR-E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) for power decoupling, and place it as close as possible to the device. Ensure the power supply is stable and within the recommended voltage range (3.3V to 5.5V).
  • The recommended clock frequency is 16 MHz, but the device can operate up to 20 MHz. However, higher frequencies may require additional decoupling and PCB layout considerations.
  • Use the PMU (Power Management Unit) registers to configure the device for low-power mode. Set the PMU_CTRL register to enable low-power mode, and adjust the clock frequency and voltage regulator settings as needed.
  • The L99SD01TR-E can operate from -40°C to 125°C (junction temperature). However, the device's performance and reliability may degrade at extreme temperatures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L99SD01TR-E Overview

Use the download button to access the L99SD01TR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L99SD, or try a keyword search, such as Peripheral Drivers
