L99SM81VQ6TR - STMicroelectronics

Description: Programmable stepper motor driver for automotive applications with micro-stepping and stall detection

Download L99SM81VQ6TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

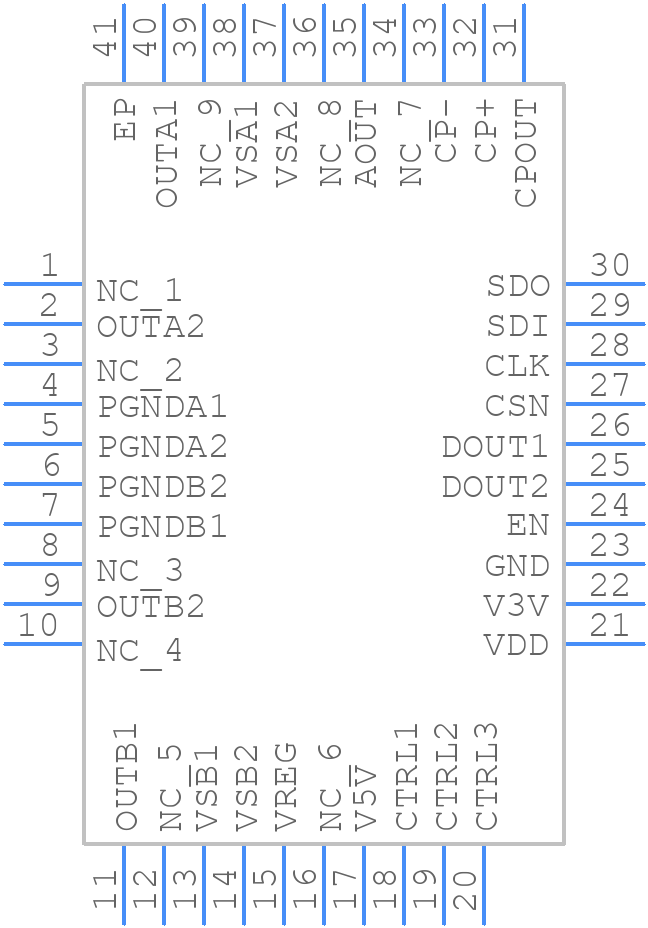

L99SM81VQ6TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99SM81VQ6TR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN40L
click to zoom
3D Models
L99SM81VQ6TR - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN40L
click to zoom

L99SM81VQ6TR Details

  • Manufacturer Part Number:

    L99SM81VQ6TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    qfn-40

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC40,.25SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.05 mm

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

L99SM81VQ6TR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Use a common mode filter and a shielded cable to minimize electromagnetic interference (EMI). Ensure that the communication protocol and baud rate are correctly configured.
  • Handle the device by the body, avoid touching the pins, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
  • Use a logic analyzer or oscilloscope to monitor the device's signals and communication protocols. Check the power supply voltage, clock frequency, and reset pin for any anomalies.
  • Use a metal shield or a Faraday cage to enclose the system, and ensure that the PCB layout and component placement minimize radiation and susceptibility to external interference.
