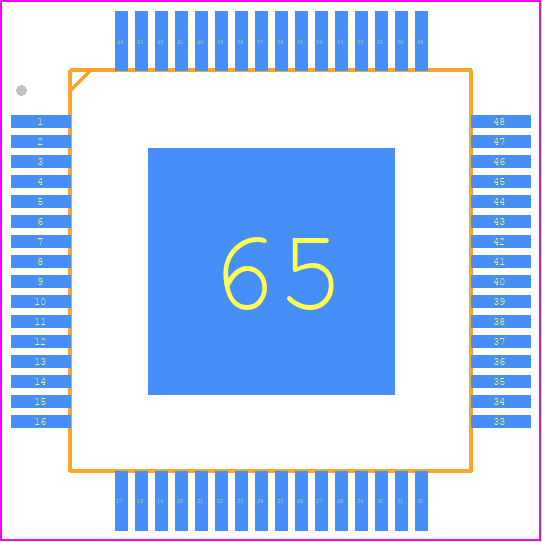

L99UDL01 - STMicroelectronics

L99UDL01 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the L99UDL01?
  STMicroelectronics provides a recommended PCB layout in the application note AN4841, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
• How do I configure the L99UDL01 for different battery chemistries?
  The L99UDL01 is designed to work with various battery chemistries, including Li-ion, Li-polymer, and LiFePO4. To configure the device for a specific battery chemistry, you need to adjust the voltage and current settings using the I2C interface. Refer to the datasheet and application notes for specific configuration guidelines.
• What is the maximum charging current that the L99UDL01 can handle?
  The L99UDL01 can handle a maximum charging current of 3A, but this can be limited by the external components, such as the charging FET and the sense resistor. It's essential to ensure that the external components are rated for the desired charging current to prevent overheating and damage.
• How does the L99UDL01 handle over-voltage protection (OVP) and under-voltage protection (UVP)?
  The L99UDL01 has built-in OVP and UVP circuits that monitor the battery voltage and disconnect the charging FET if the voltage exceeds the programmed limits. The device also has a programmable voltage threshold for UVP, which can be set using the I2C interface.
• Can the L99UDL01 be used for charging multiple batteries in parallel?
  Yes, the L99UDL01 can be used for charging multiple batteries in parallel, but it requires additional external components, such as a balancing circuit, to ensure that each battery is charged equally. STMicroelectronics provides application notes and reference designs for parallel battery charging using the L99UDL01.
