LA-301VB - ROHM Semiconductor

Description: LED Displays & Accessories LED #1 DIGIT DISP .3" CA RED

Download LA-301VB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

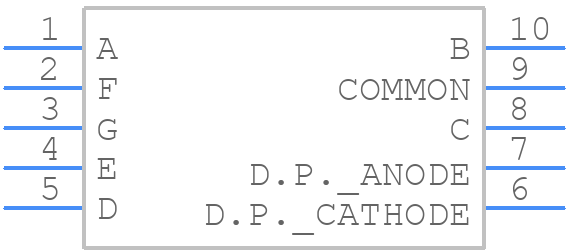

LA-301VB - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
LA-301VB - ROHM Semiconductor PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - L-series
click to zoom
3D Models
LA-301VB - ROHM Semiconductor - 3D model - Dual-In-Line Packages - L-series
click to zoom

LA-301VB Details

  • Manufacturer Part Number:

    LA-301VB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC PACKAGE-10

  • Country Of Origin:

    Japan, Mainland China, Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    8 mm

  • Forward Current-Max:

    0.015 A

  • Forward Voltage-Max:

    2.8 V

  • JESD-609 Code:

    e1

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    650 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

LA-301VB Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for LA-301VB is 4.5V to 16V.
  • To ensure the stability of the output voltage, it is recommended to use a capacitor with a value of 10uF or more between the output pin and GND pin, and to keep the input voltage stable.
  • The maximum output current that LA-301VB can provide is 1A.
  • To protect LA-301VB from overheating, it is recommended to provide a heat sink or a thermal pad, and to ensure good airflow around the device.
  • Yes, LA-301VB can operate in a high-temperature environment up to 125°C, but the output current should be derated according to the temperature.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LA-301VB Overview

Use the download button to access the LA-301VB schematic symbol, PCB footprint, and 3D model.
