LA-301VL - ROHM Semiconductor

Description: Single Digit LED Numeric Displays : 5 packaged of character height 8mm, 10.16mm, 13mm, 14.6mm and 25.4mm are in lineup. Blue-color emission types are available for packages of character height 8mm, 10.16mm and 14.6mm.

Download LA-301VL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

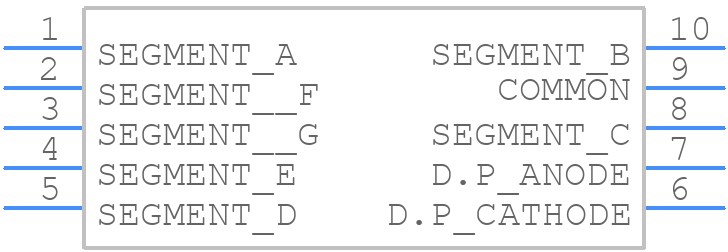

LA-301VL - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
LA-301VL - ROHM Semiconductor PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - LA-301ML_1
click to zoom

LA-301VL Details

  • Manufacturer Part Number:

    LA-301VL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC PACKAGE-10

  • Country Of Origin:

    Japan, Mainland China, Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    8 mm

  • Forward Current-Max:

    0.015 A

  • Forward Voltage-Max:

    2.8 V

  • JESD-609 Code:

    e1

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    650 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

LA-301VL Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the LA-301VL is 2.7V to 5.5V.
  • To ensure the LA-301VL is properly powered on, make sure to connect the VCC pin to a stable power supply, and the GND pin to a reliable ground connection.
  • The maximum current consumption of the LA-301VL is 1.5mA (typical) and 3.5mA (maximum) at 3.3V supply voltage.
  • The LA-301VL can be interfaced with a microcontroller using a standard I2C bus interface, with the SCL pin connected to the microcontroller's clock pin and the SDA pin connected to the microcontroller's data pin.
  • The LA-301VL has an accuracy of ±20% for ambient light sensing, with a range of 0.01 lux to 100,000 lux.
