LA-401MN - ROHM Semiconductor

Description: ROHM LA-401MN 7-Segment LED Display, CC Green 16 mcd RH DP 10.16mm

Download LA-401MN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

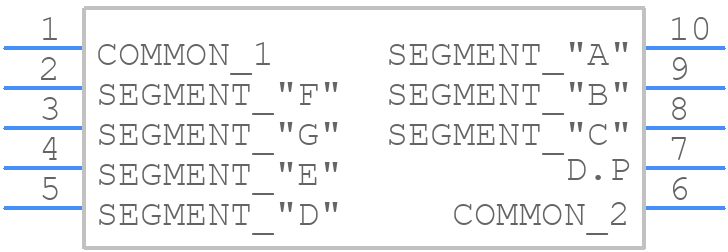

LA-401MN - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
LA-401MN - ROHM Semiconductor PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - LA-401MN
click to zoom
3D Models
LA-401MN - ROHM Semiconductor - 3D model - Dual-In-Line Sockets - LA-401MN
click to zoom

LA-401MN Details

  • Manufacturer Part Number:

    LA-401MN

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    9.60 X 13 MM, 7 MM HEIGHT, PLASTIC PACKAGE-10

  • Country Of Origin:

    Japan, Mainland China, Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    10.16 mm

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    2.8 V

  • JESD-609 Code:

    e1

  • Luminous Intensity-Min:

    5.6 cd

  • Luminous Intensity-Nom:

    16 mcd

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    563 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)
