LA-401VD - ROHM Semiconductor

Description: Single Digit LED Numeric Displays : 5 packaged of character height 8mm, 10.16mm, 13mm, 14.6mm and 25.4mm are in lineup. Blue-color emission types are available for packages of character height 8mm, 10.16mm and 14.6mm.

Download LA-401VD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

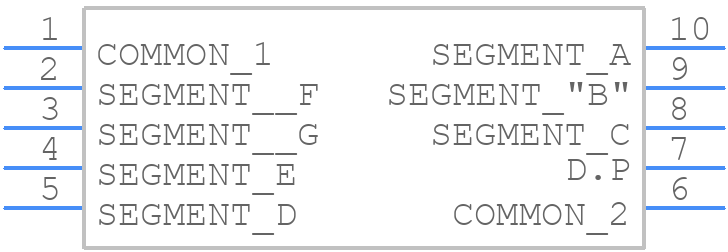

Symbol
LA-401VD - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
LA-401VD - ROHM Semiconductor PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - LA-401MN
click to zoom
3D Models
LA-401VD - ROHM Semiconductor - 3D model - Dual-In-Line Sockets - LA-401MN
click to zoom

LA-401VD Details

  • Manufacturer Part Number:

    LA-401VD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    9.60 X 13 MM, 7 MM HEIGHT, PLASTIC PACKAGE-10

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    10.16 mm

  • Forward Current-Max:

    0.015 A

  • JESD-609 Code:

    e1

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    650 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

LA-401VD Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for LA-401VD is 4.5V to 5.5V, although it can operate from 3.5V to 6.0V with reduced performance.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input signal is within the recommended voltage range.
  • The maximum input signal amplitude that LA-401VD can handle is 2.5Vpp (peak-to-peak) for a 1kHz sine wave input.
  • To minimize noise and interference, use a ground plane, keep the input and output traces short and away from noise sources, and use shielding if necessary. Also, ensure proper power supply decoupling and filtering.
  • LA-401VD is rated for operation up to 85°C, but its performance may degrade at higher temperatures. For high-temperature applications, consider using a thermally-enhanced package or a different device.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LA-401VD Overview

Use the download button to access the LA-401VD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LA-40, or try a keyword search, such as LED Displays
