LA-401VN - ROHM Semiconductor

Description: Single Digit LED Numeric Displays : 5 packaged of character height 8mm, 10.16mm, 13mm, 14.6mm and 25.4mm are in lineup. Blue-color emission types are available for packages of character height 8mm, 10.16mm and 14.6mm.

Download LA-401VN Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LA-401VN model

Email notifications will be applied after download.

Send part feedback

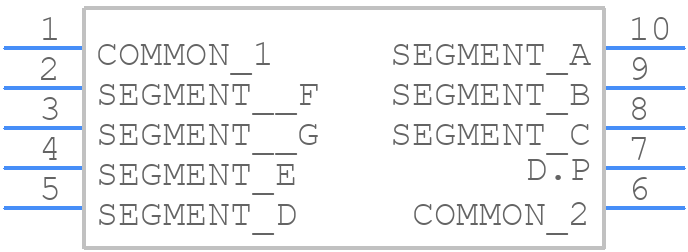

Symbol

LA-401VN - ROHM Semiconductor - PCB symbol

PCB Footprints

LA-401VN - ROHM Semiconductor PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - LA-401MN

3D Models

LA-401VN - ROHM Semiconductor - 3D model - Dual-In-Line Sockets - LA-401MN

Datasheet Download Datasheet
Stock & Prices Price & Stock for LA-401VN
Part Number LA-401VN
Manufacturer ROHM Semiconductor
Pin Count 10
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - LA-401MN
Released Date Sep 5, 2018
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

LA-401VN Details

Manufacturer Part Number:
LA-401VN
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
Package Description:
9.60 X 13 MM, 7 MM HEIGHT, PLASTIC PACKAGE-10
Country Of Origin:
Japan, Mainland China, Malaysia
HTS Code:
8541.40.20.00
Factory Lead Time:
12 Weeks
Manufacturer:
ROHM Semiconductor
YTEOL:
0
Color:
RED
Color@Wavelength:
Red
Configuration:
COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display Height:
10.16 mm
Forward Current-Max:
0.015 A
JESD-609 Code:
e1
Number of Characters:
1
Number of Functions:
1
Operating Temperature-Max:
75 °C
Operating Temperature-Min:
-25 °C
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY
Peak Wavelength:
650 nm
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)

LA-401VN Frequently Asked Questions (FAQs)

The recommended operating voltage range for LA-401VN is 4.5V to 16V.
To ensure the stability of the output voltage, it is recommended to use a capacitor with a value of 10uF or more between the VIN pin and GND pin, and a capacitor with a value of 10uF or more between the VOUT pin and GND pin.
The maximum output current that LA-401VN can provide is 1A.
The output voltage of LA-401VN can be adjusted by connecting a resistor divider network between the VOUT pin and the ADJ pin, and the GND pin.
The EN (Enable) pin is used to turn the regulator on or off. When the EN pin is high, the regulator is enabled, and when it is low, the regulator is disabled.

Trust Checks

Community Provided

System Verified

Community Approved

LA-401VN Overview

Use the download button to access the LA-401VN schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LA-40, or try a keyword search, such as LED Displays
