LA-601AB - ROHM Semiconductor

Description: LED Displays & Accessories LED #1 DIGIT DISP .6" 626 HI-BRIGHT RD

Download LA-601AB Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LA-601AB model

Email notifications will be applied after download.

Send part feedback

Symbol

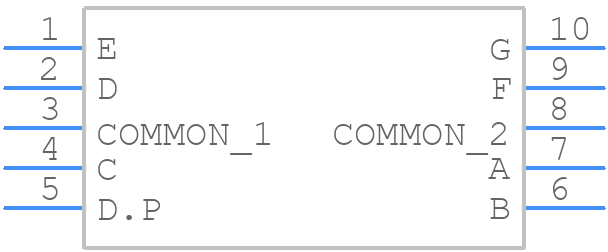

LA-601AB - ROHM Semiconductor - PCB symbol

PCB Footprints

LA-601AB - ROHM Semiconductor PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - HDSP-C8E1

Datasheet Download Datasheet
Stock & Prices Price & Stock for LA-601AB
Part Number LA-601AB
Manufacturer ROHM Semiconductor
Pin Count 10
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - HDSP-C8E1
Released Date Apr 30, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LA-601AB Details

Manufacturer Part Number:
LA-601AB
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
Country Of Origin:
Japan, Mainland China, Malaysia
HTS Code:
8541.40.20.00
Factory Lead Time:
12 Weeks
Manufacturer:
ROHM Semiconductor
YTEOL:
0
Color:
HIGH BRIGHT RED
Color@Wavelength:
Orange
Configuration:
COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display Height:
14.6 mm
Forward Current-Max:
0.025 A
Forward Voltage-Max:
2.6 V
JESD-609 Code:
e1
Number of Characters:
1
Number of Functions:
1
Operating Temperature-Max:
75 °C
Operating Temperature-Min:
-25 °C
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY
Peak Wavelength:
626 nm
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)

LA-601AB Frequently Asked Questions (FAQs)

The recommended operating voltage range for LA-601AB is 4.5V to 16V.
To ensure the stability of the output voltage, it is recommended to use a capacitor with a value of 10uF or more between the output pin and the GND pin.
The maximum output current that LA-601AB can provide is 1A.
To protect LA-601AB from overheating, it is recommended to provide a heat sink or a thermal pad to dissipate heat, especially in high-power applications.
Yes, LA-601AB can operate in high-temperature environments up to 125°C, but the output current should be derated accordingly to prevent overheating.

Trust Checks

Expert Contribution

System Verified

Community Approved

LA-601AB Overview

Use the download button to access the LA-601AB schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LA-60, or try a keyword search, such as LED Displays
