LA-601EB - ROHM Semiconductor

Description: LED Displays & Accessories LED #1 DIGIT DISP .6" CA HI-BRIGHT OR

Download LA-601EB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

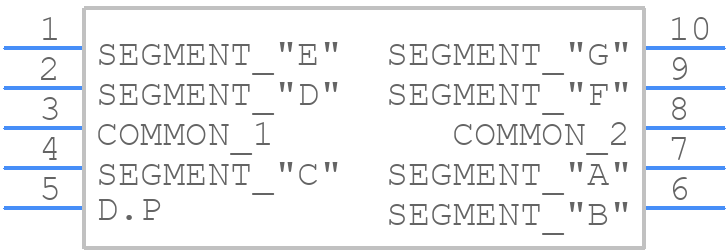

Symbol
LA-601EB - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
LA-601EB - ROHM Semiconductor PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-10
click to zoom

LA-601EB Details

  • Manufacturer Part Number:

    LA-601EB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Japan, Mainland China, Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Color:

    HIGH BRIGHT ORANGE

  • Color@Wavelength:

    Amber

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.6 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.6 V

  • JESD-609 Code:

    e1

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    610 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

LA-601EB Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for LA-601EB is 4.5V to 16V, although it can tolerate up to 18V for short periods.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 10uF capacitor to ground. Also, ensure the input voltage is within the recommended range.
  • The maximum power dissipation of LA-601EB is 1.5W, and it's essential to ensure the device is properly heat-sinked to prevent overheating.
  • While LA-601EB can operate up to 125°C, it's recommended to derate the power dissipation by 1.5mW/°C above 25°C to ensure reliable operation.
  • To protect LA-601EB from ESD, handle the device by the body, use an anti-static wrist strap, and store the device in an anti-static bag or container.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LA-601EB Overview

Use the download button to access the LA-601EB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LA-60, or try a keyword search, such as LED Displays
