LA-601MB footprint, schematic symbol and 3D model by ROHM Semiconductor

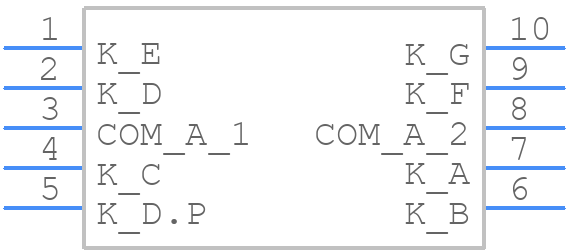

Symbol

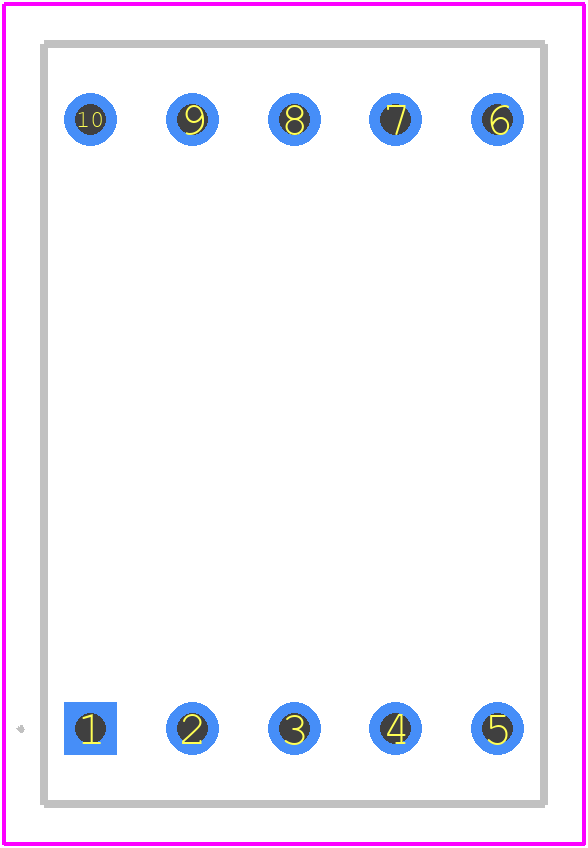

PCB Footprints

3D Models

LA-601MB Details

The recommended operating voltage range for LA-601MB is 4.5V to 5.5V, although it can tolerate a voltage range of 3.5V to 6.5V for short periods.
To ensure proper power-on, the power supply voltage (VCC) should be applied before the clock signal (CLK). Also, the power-on reset (POR) circuit should be used to ensure a clean power-on sequence.
The maximum clock frequency supported by LA-601MB is 10MHz, although it can operate at frequencies up to 12MHz with reduced voltage supply (VCC) and proper PCB design.
The output impedance of LA-601MB is typically around 100 ohms. To ensure proper signal integrity, it's recommended to use a buffer or a line driver when driving long cables or heavy loads.
While LA-601MB is rated for operation up to 85°C, it's recommended to derate the operating temperature to 70°C or lower for reliable long-term operation. Above 85°C, the device may experience reduced performance or even failure.

Community Provided

System Verified

Community Approved

Use the download button to access the LA-601MB schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LA-60, or try a keyword search, such as LED Displays
