LA-601VL - ROHM Semiconductor

Description: Single Digit LED Numeric Displays : 5 packaged of character height 8mm, 10.16mm, 13mm, 14.6mm and 25.4mm are in lineup. Blue-color emission types are available for packages of character height 8mm, 10.16mm and 14.6mm.

Download LA-601VL Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LA-601VL model

Email notifications will be applied after download.

Send part feedback

Symbol

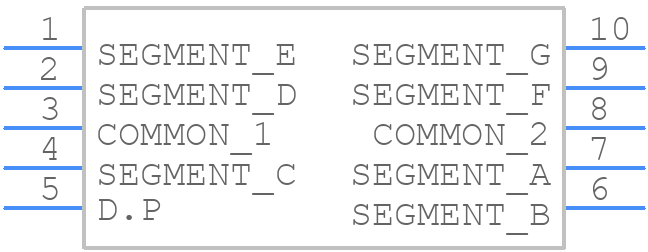

LA-601VL - ROHM Semiconductor - PCB symbol

PCB Footprints

LA-601VL - ROHM Semiconductor PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - LA-601AL_1

Datasheet Download Datasheet
Stock & Prices Price & Stock for LA-601VL
Part Number LA-601VL
Manufacturer ROHM Semiconductor
Pin Count 10
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - LA-601AL_1
Released Date Sep 5, 2018
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

LA-601VL Details

Manufacturer Part Number:
LA-601VL
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
Country Of Origin:
Japan, Mainland China, Malaysia
HTS Code:
8541.40.20.00
Manufacturer:
ROHM Semiconductor
YTEOL:
0
Color:
RED
Color@Wavelength:
Red
Configuration:
COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display Height:
14.6 mm
Forward Current-Max:
0.02 A
JESD-609 Code:
e1
Number of Characters:
1
Number of Functions:
1
Operating Temperature-Max:
75 °C
Operating Temperature-Min:
-25 °C
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY
Peak Wavelength:
650 nm
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)

LA-601VL Frequently Asked Questions (FAQs)

The recommended operating voltage range for LA-601VL is 4.5V to 5.5V.
To ensure proper power-on, a 10uF capacitor should be connected between VCC and GND, and a 1kΩ resistor should be connected between VCC and the power supply.
The maximum current that can be drawn from the LA-601VL is 100mA.
To configure the LA-601VL for I2C mode, connect the SCL pin to the I2C clock signal, and the SDA pin to the I2C data signal. Also, ensure that the I2C address is set correctly using the A0, A1, and A2 pins.
The INT pin is an interrupt output that goes low when the LA-601VL detects a fault or alarm condition, such as an over-temperature or over-voltage event.

Trust Checks

Community Provided

System Verified

Community Approved

LA-601VL Overview

Use the download button to access the LA-601VL schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LA-60, or try a keyword search, such as LED Displays
