A symmetrical layout with a central ground plane and minimal track lengths is recommended. Keep the high-frequency tracks away from the low-frequency tracks, and use a ground plane under the device to reduce electromagnetic interference (EMI).
Use a high-precision shunt resistor with a low temperature coefficient, and ensure the resistor is close to the LA200-P to minimize parasitic inductance. Also, use a low-noise, high-accuracy analog-to-digital converter (ADC) to digitize the output signal.
Calibrate the LA200-P at multiple points across the operating range using a high-accuracy current source and a precision multimeter. Use a linear regression algorithm to calculate the calibration coefficients, and store them in non-volatile memory for future use.
Implement an overcurrent detection circuit that monitors the output voltage of the LA200-P. When an overcurrent condition is detected, disconnect the load using a high-speed switch or a fuse, and alert the system controller to take corrective action.
The recommended operating temperature range for the LA200-P is -40°C to 125°C. However, the device can operate up to 150°C for short periods during fault conditions. Ensure proper thermal management and heat sinking to maintain a safe operating temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LA200-P Overview

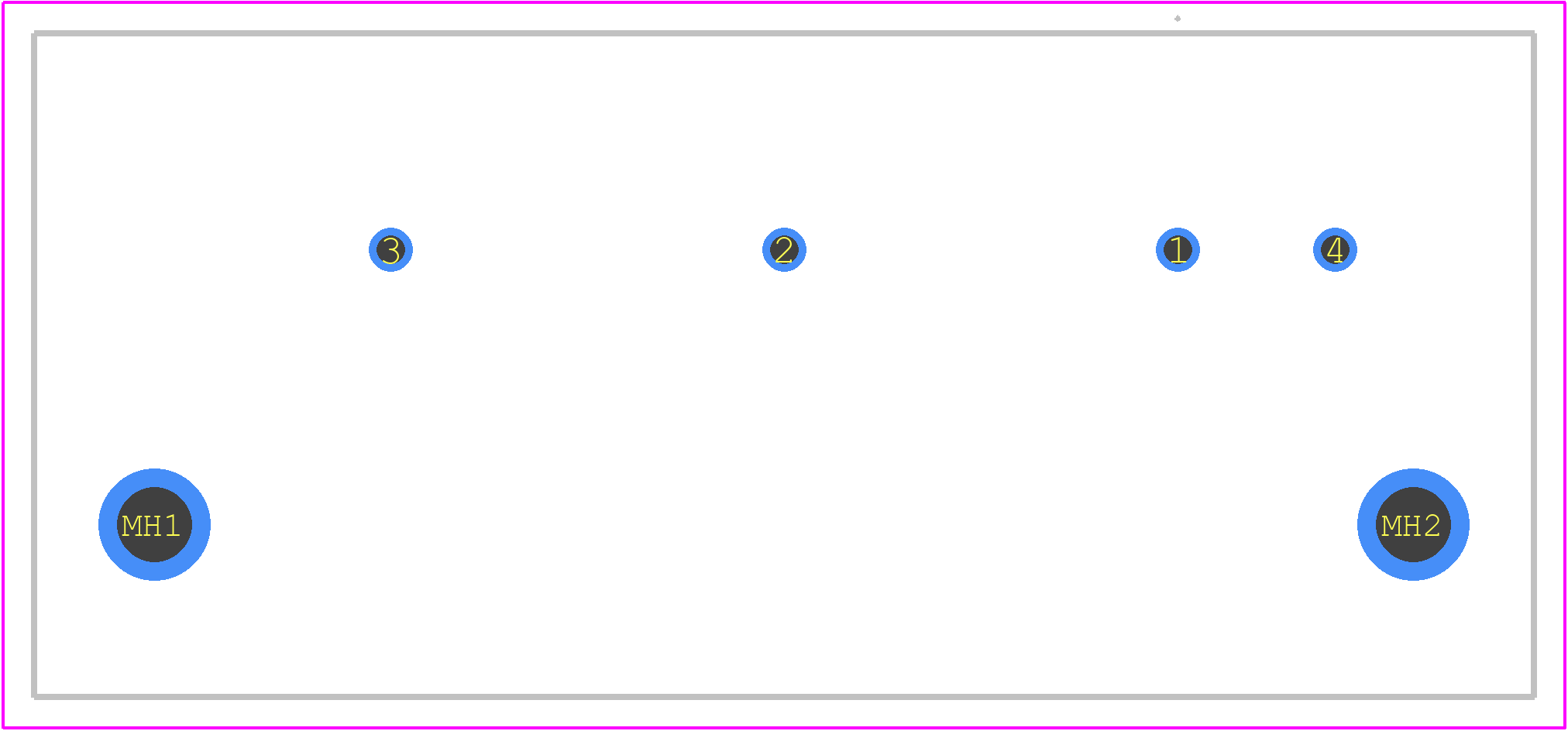

Use the download button to access the LA200-P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LA200,
or try a keyword search, such as Other Sensors/Transducers
