Part Image

LA3161-E - onsemi

Description: 2-Channel Preamplifier For Car Stereo

Download LA3161-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

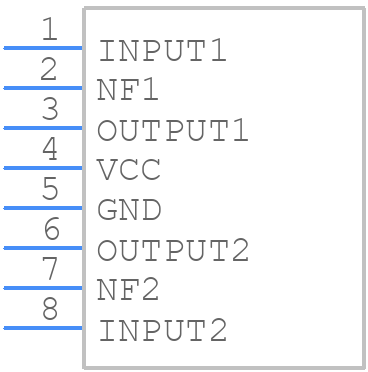

Symbol
LA3161-E - onsemi - PCB symbol
click to zoom
PCB Footprints
LA3161-E - onsemi PCB footprint - Other - Other - LA3161-E-2
click to zoom
3D Models
LA3161-E - onsemi - 3D model - Other - LA3161-E-2
click to zoom

LA3161-E Details

  • Manufacturer Part Number:

    LA3161-E

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SIP-8

  • Manufacturer Package Code:

    127AG

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Consumer IC Type:

    AUDIO PREAMPLIFIER

  • Gain:

    35 dB

  • Harmonic Distortion:

    0.05%

  • JESD-30 Code:

    R-PSIP-T8

  • JESD-609 Code:

    e6

  • Length:

    22 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SIP

  • Package Equivalence Code:

    SIP8,.05

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    5.7 mm

  • Supply Current-Max:

    8 mA

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Width:

    3 mm

LA3161-E Frequently Asked Questions (FAQs)

  • A good PCB layout practice for LA3161-E is to keep the input and output stages separate, use a star-ground configuration, and place decoupling capacitors close to the IC. Additionally, use a solid ground plane and avoid routing high-frequency signals near the IC.
  • To ensure the LA3161-E operates within the recommended operating temperature range, provide adequate heat sinking, use a thermal pad or thermal interface material, and avoid exposing the IC to extreme temperatures during storage or operation.
  • The maximum allowed voltage on the VCC pin is 18V. To protect against overvoltage, use a voltage regulator or a transient voltage suppressor (TVS) diode to limit the voltage to the recommended range.
  • To troubleshoot issues with the LA3161-E, check the input voltage, ensure proper pin connections, verify the feedback resistors are correctly connected, and use an oscilloscope to measure the output voltage and frequency.
  • Yes, the LA3161-E is suitable for high-reliability and automotive applications. However, ensure you follow the recommended operating conditions, and consider using additional protection circuits and components to meet the specific requirements of your application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LA3161-E Overview

Use the download button to access the LA3161-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LA316, or try a keyword search, such as Audio/Video Amplifiers
