LA4440J-K-E footprint, schematic symbol and 3D model by onsemi

Symbol

click to zoom

PCB Footprints

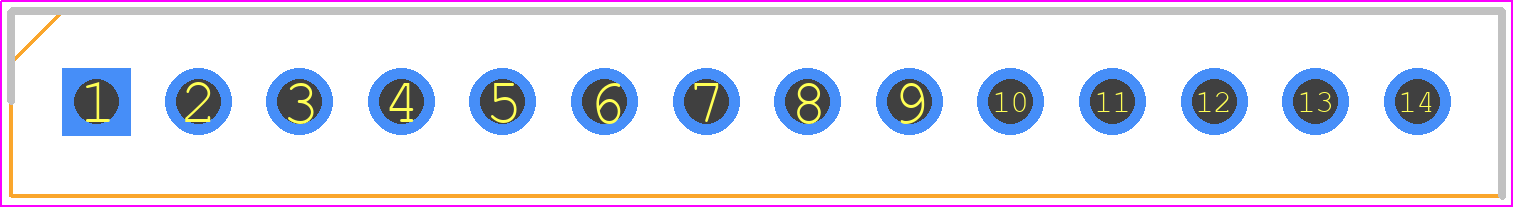

LA4440J-K-E - onsemi PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - LA4440J-K-E

click to zoom

3D Models

LA4440J-K-E - onsemi - 3D model - Transistor Outline, Vertical - LA4440J-K-E

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LA4440J-K-E
Part Number LA4440J-K-E
Manufacturer onsemi
Pin Count 14
Part Category Integrated Circuit
Package Category Transistor Outline, Vertical
Footprint Name Transistor Outline, Vertical - LA4440J-K-E
Released Date Mar 31, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

LA4440J-K-E Details

Manufacturer Part Number:
LA4440J-K-E
Brand Name:
ON Semiconductor
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Manufacturer Package Code:
127AQ
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
onsemi
YTEOL:
0
Consumer IC Type:
AUDIO AMPLIFIER
JESD-609 Code:
e6
Number of Terminals:
14
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-20 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TFQFP
Package Equivalence Code:
SIP14,.09
Qualification Status:
Not Qualified
Supply Current-Max:
200 mA
Surface Mount:
NO
Temperature Grade:
COMMERCIAL
Terminal Finish:
Tin/Bismuth (Sn/Bi)
Terminal Pitch:
2.54 mm
Terminal Position:
SINGLE

LA4440J-K-E Frequently Asked Questions (FAQs)

The recommended operating voltage range for the LA4440J-K-E is 4.5V to 18V.
To prevent overheating, ensure good heat dissipation by using a heat sink, and keep the device within the recommended operating temperature range of -40°C to 125°C.
The maximum power dissipation of the LA4440J-K-E is 2.5W.
Yes, the LA4440J-K-E is designed to operate in a wide range of humidity conditions, but it's recommended to follow proper PCB design and assembly guidelines to prevent moisture-related issues.
To troubleshoot issues with the LA4440J-K-E, check the power supply voltage, ensure proper grounding, and verify the input and output connections. Also, consult the datasheet and application notes for guidance.
