A good PCB layout for the LA4725-E should ensure that the input and output stages are separated, with the input stage placed near the input pins and the output stage near the output pins. Additionally, the power supply pins should be decoupled with capacitors and the ground plane should be solid to minimize noise and electromagnetic interference.
The choice of external components for the LA4725-E depends on the specific application and requirements. For example, the input and output capacitors should be chosen based on the frequency response and impedance requirements, while the feedback resistors should be chosen based on the desired gain and bandwidth. It's recommended to consult the datasheet and application notes for guidance on component selection.
The maximum power dissipation of the LA4725-E is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at an ambient temperature of 25°C. However, this value can be derated based on the actual operating conditions and thermal design of the system.
To ensure the stability of the LA4725-E, it's essential to follow the recommended layout and component selection guidelines. Additionally, the input and output impedance should be matched to minimize reflections and oscillations. It's also recommended to add decoupling capacitors and to use a solid ground plane to minimize noise and electromagnetic interference.
The recommended operating voltage range for the LA4725-E is 10V to 26V, with a typical operating voltage of 12V or 15V. However, the device can operate at voltages as low as 8V, but with reduced performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LA4725-E Overview

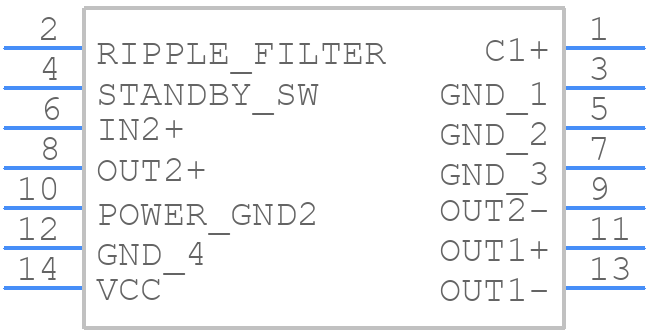

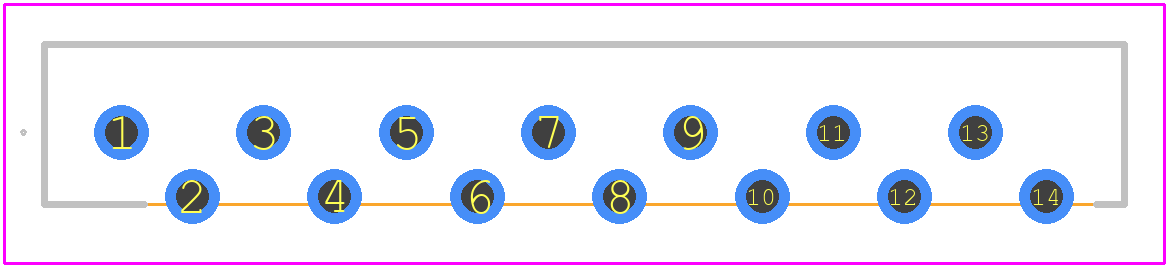

Use the download button to access the LA4725-E schematic symbol, PCB footprint, and 3D model.
