A good PCB layout for LA6358NS involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the IC. Additionally, it's recommended to use a shielded inductor and to keep the switching node (pin 3) as short as possible.
When selecting an inductor for LA6358NS, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current of at least 1.5 times the maximum output current, and a DC resistance of less than 0.5 ohms. Ferrite or iron powder cores are suitable for most applications.
The maximum junction temperature for LA6358NS is 150°C. It's essential to ensure that the IC's operating temperature stays below this limit to prevent damage and ensure reliable operation.
While LA6358NS can operate up to 150°C, it's not recommended for use in high-temperature environments (above 125°C) without proper derating and thermal management. Consult the datasheet and onsemi's application notes for guidance on high-temperature operation.
To troubleshoot oscillations or instability issues with LA6358NS, check the PCB layout, ensure proper decoupling, and verify that the input and output capacitors meet the recommended specifications. Also, check for any noise or interference on the input voltage and ensure that the IC is properly bypassed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LA6358NS Overview

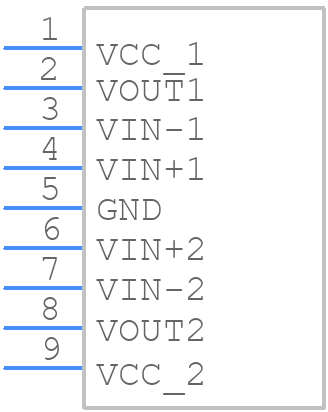

Use the download button to access the LA6358NS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LA635,
or try a keyword search, such as Operational Amplifiers
