A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern around the device.
Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure good airflow and avoid thermal hotspots.
Use X7R or X5R ceramic capacitors with a voltage rating of 10V or higher. For input capacitors, use 10uF to 22uF, and for output capacitors, use 22uF to 47uF.
Use a shielded enclosure, keep the device away from antennas and high-frequency components, and ensure good grounding and decoupling. Implement EMI filters and shielding if necessary.
Use a reflow soldering profile with a peak temperature of 240°C to 250°C, and a dwell time of 30 seconds to 60 seconds. Ensure a controlled ramp-up and cool-down rate.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LA72914V-TLM-H Overview

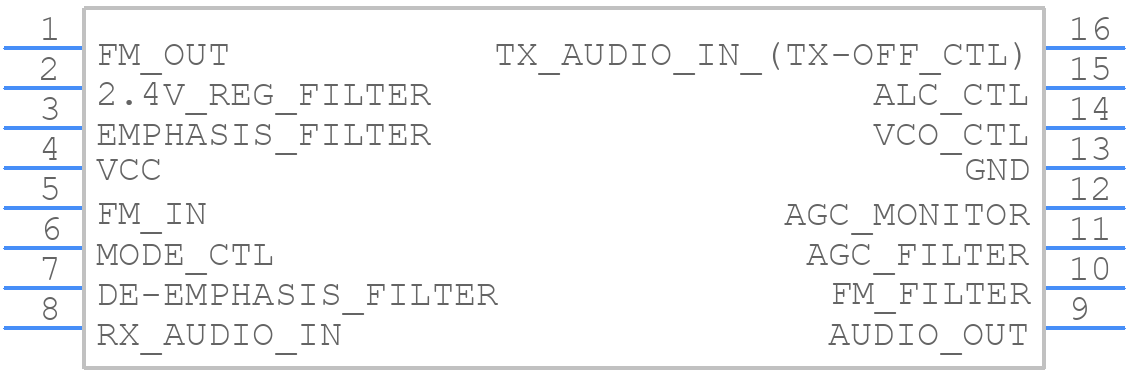

Use the download button to access the LA72914V-TLM-H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LA729,
or try a keyword search, such as Other Consumer ICs
