LAA110STR - LITTELFUSE

Description: Solid State Photo-Coupled Relay (Photorelay) SPST-NO (1 Form A) x 2 8-SMD (0.300", 7.62mm)

Download LAA110STR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

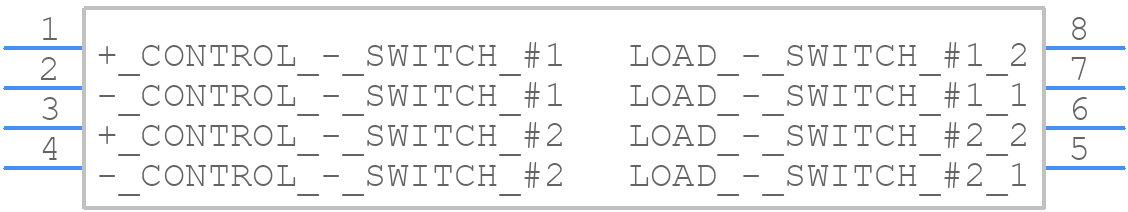

LAA110STR - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
LAA110STR - LITTELFUSE PCB footprint - Other - Other - 8-SMD_2026
click to zoom
3D Models
LAA110STR - LITTELFUSE - 3D model - Other - 8-SMD_2026
click to zoom

LAA110STR Details

  • Manufacturer Part Number:

    LAA110STR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    5.59

  • Additional Feature:

    CMOS COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Control Voltage:

    0.9 V

  • Forward Current-Max:

    0.05 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.12 A

  • On-state Resistance-Max:

    35 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3.302 mm

  • Overall Length:

    9.652 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Surface Mount:

    YES

LAA110STR Frequently Asked Questions (FAQs)

  • A good PCB layout for the LAA110STR involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the leads to reduce inductance and noise.
  • To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the time the iron is in contact with the component.
  • The LAA110STR can operate safely in temperatures ranging from -40°C to 125°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance and reliability.
  • Yes, the LAA110STR is designed for high-reliability applications and meets the requirements of AEC-Q101, making it suitable for use in automotive and other high-reliability industries.
  • Store the LAA110STR in its original packaging or a similar ESD-protective package, and avoid exposing it to extreme temperatures, humidity, or physical stress during shipping and storage.
