LAN7431/YXX - Microchip

LAN7431/YXX Details

• Manufacturer Part Number:

  LAN7431/YXX

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  72

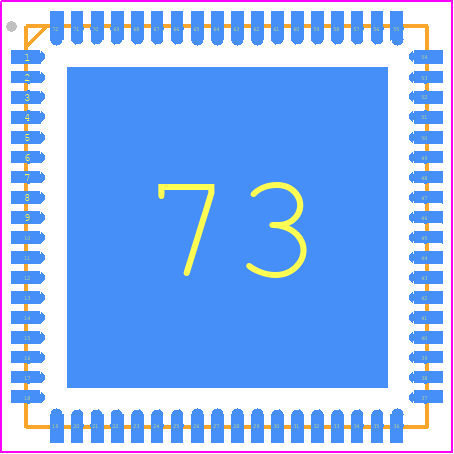

• Manufacturer Package Code:

  VQFN-72

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  14 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  19

• Additional Feature:

  ALSO HAVING NETWORK PROTOCOLS IEEE 802.3AZ; IEEE 802.1Q; IEEE 802.3X

• Boundary Scan:

  YES

• Bus Compatibility:

  PCI

• Clock Frequency-Max:

  25 MHz

• Communication Protocol:

  SYNC, BYTE; ETHERNET

• Data Transfer Rate-Max:

  256 MBps

• JESD-30 Code:

  S-XQCC-N72

• JESD-609 Code:

  e3

• Length:

  10 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of Serial I/Os:

  4

• Number of Terminals:

  72

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Screening Level:

  TS 16949

• Seated Height-Max:

  1 mm

• Supply Voltage-Max:

  1.32 V

• Supply Voltage-Min:

  1.14 V

• Supply Voltage-Nom:

  1.2 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  10 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
