Technical Content
Part Image

LAN8720A-CP-TR - Microchip

Description: Ethernet ICs RMII 10/100 ETH XCVR w/HP AutoMDIXSupport

Download LAN8720A-CP-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

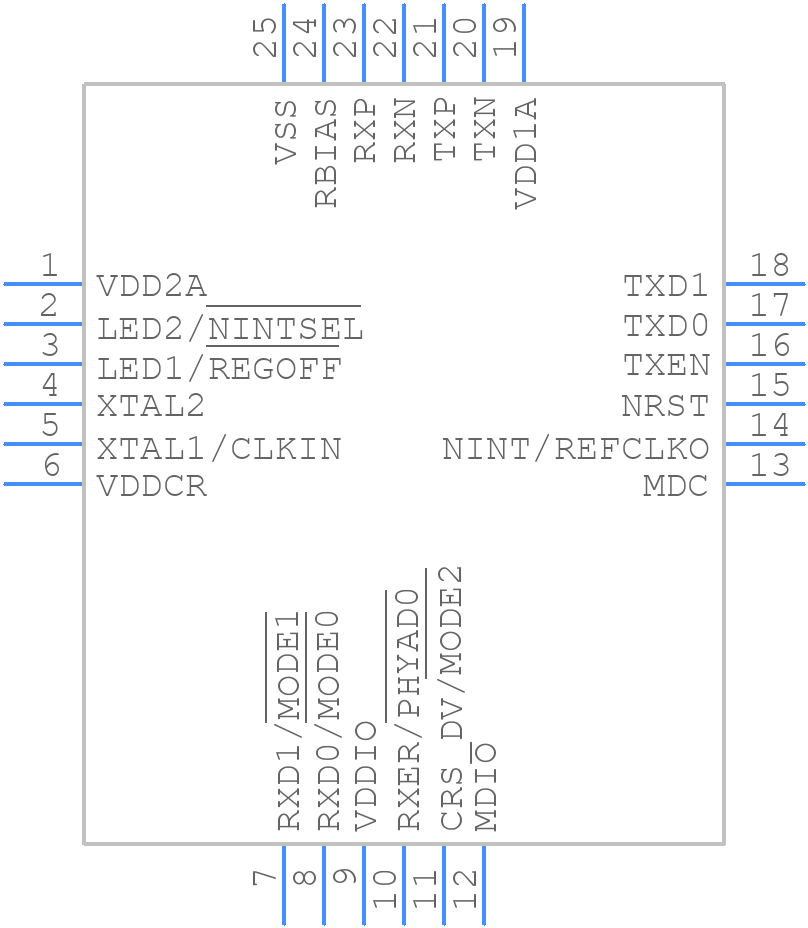

Symbol
LAN8720A-CP-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
LAN8720A-CP-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-pin QFN_1
click to zoom
3D Models
LAN8720A-CP-TR - Microchip - 3D model - Quad Flat No-Lead - 24-pin QFN_1
click to zoom

LAN8720A-CP-TR Details

  • Manufacturer Part Number:

    LAN8720A-CP-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, 0.85 MM HEIGHT, ROHS COMPLIANT, QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    VQFN-24

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    54 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LAN8720A-CP-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LAN8720A-CP-TR can be found in the Microchip application note AN-2059, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and signal integrity.
  • The LAN8720A-CP-TR can be configured for half-duplex or full-duplex operation through the use of the DUPLEX pin. Tying the DUPLEX pin to VCC configures the device for full-duplex operation, while tying it to GND configures it for half-duplex operation.
  • The LAN8720A-CP-TR supports cable lengths up to 100 meters, which is the standard maximum length for Ethernet cables.
  • The LAN8720A-CP-TR has a built-in power-down mode that can be controlled through the PD pin. Tying the PD pin to VCC puts the device in power-down mode, while tying it to GND enables normal operation.
  • The LAN8720A-CP-TR has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated within a temperature range of -40°C to 85°C, and proper thermal design and heat sinking should be implemented to prevent overheating.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LAN8720A-CP-TR Overview

Use the download button to access the LAN8720A-CP-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LAN87, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
