LAN8840/PSA - Microchip

Description: • Single-Chip 10/100/1000 Mbps Ethernet Transceiver Suitable for IEEE 802.3 Applications • RGMII with 3.3V/2.5V/1.8V I/Os - RGMII Timing Supports On-Chip Delay According to RGMII Version 2.0, with Programming Options for External Delay and Making Adjustments and Corrections to TX and RX Timing Paths • Auto-Negotiation to Automatically Select the Highest Link-Up Speed (10/100/1000 Mbps) and Duplex (Half/Full) • On-Chip Termination Resistors for the Differential Pairs • On-Chip LDO Controller to Su

Download LAN8840/PSA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

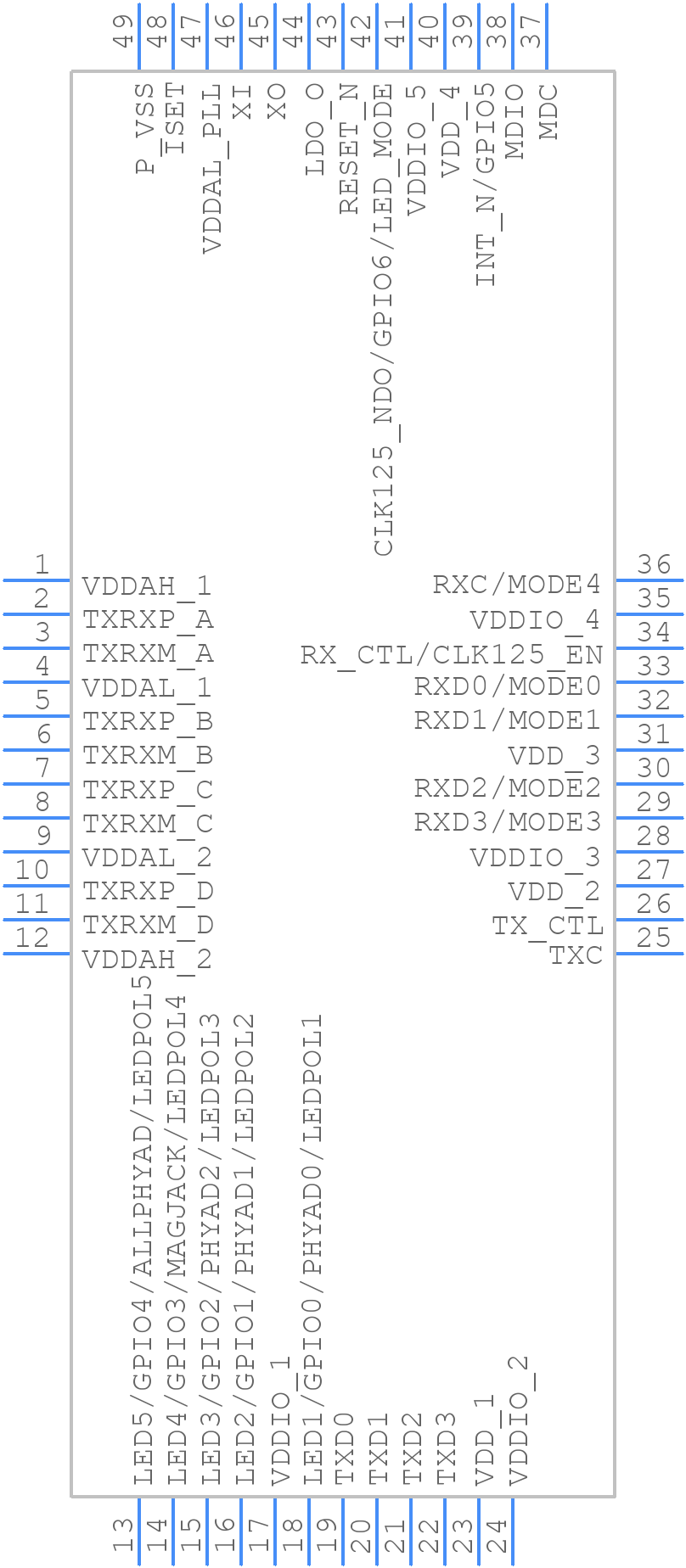

LAN8840/PSA - Microchip - PCB symbol
click to zoom
PCB Footprints
LAN8840/PSA - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-LEAD VERY THIN PLASTIC QUAD FLAT, NO LEAD PACKAGE (PSA) - 7X7 MM BODY [VQFN]
click to zoom
3D Models
LAN8840/PSA - Microchip - 3D model - Quad Flat No-Lead - 48-LEAD VERY THIN PLASTIC QUAD FLAT, NO LEAD PACKAGE (PSA) - 7X7 MM BODY [VQFN]
click to zoom

LAN8840/PSA Details

  • Manufacturer Part Number:

    LAN8840/PSA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    48

  • Manufacturer Package Code:

    VQFN-48

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    4A994.J

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    24

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    4

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.28SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

LAN8840/PSA Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout guide in the LAN8840/PSA evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The LAN8840/PSA can be configured for different PHY modes (e.g., 10BASE-T, 100BASE-TX, 1000BASE-T) using the device's registers. Microchip provides a register programming guide in the LAN8840/PSA datasheet, which includes the necessary register settings for each PHY mode. Additionally, the Microchip LANCheck online tool can be used to generate the required register settings.
  • The power consumption of the LAN8840/PSA varies depending on the operating mode. Microchip provides power consumption estimates in the LAN8840/PSA datasheet, which include typical values for active, idle, and power-down modes. However, actual power consumption may vary depending on the specific application and PCB design. It's recommended to perform power measurements using a suitable test setup to determine the actual power consumption.
  • Microchip provides a troubleshooting guide in the LAN8840/PSA datasheet, which includes common issues and their solutions. Additionally, the Microchip LANCheck online tool can be used to diagnose and troubleshoot issues with the LAN8840/PSA. It's also recommended to consult the Microchip support forum and knowledge base for additional resources and FAQs.
  • The LAN8840/PSA is available in industrial (-40°C to 85°C) and commercial (0°C to 70°C) temperature ranges. It's essential to select the appropriate temperature range for the specific application. Microchip provides temperature-related specifications and guidelines in the LAN8840/PSA datasheet.
