Part Image

LAN91C111-NS - Microchip

Description: Microchip LAN91C111-NS, Ethernet Controller 10/100 Mbits/s MII, EISA, ISA, 3.3 V, 128-Pin QFP

Download LAN91C111-NS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

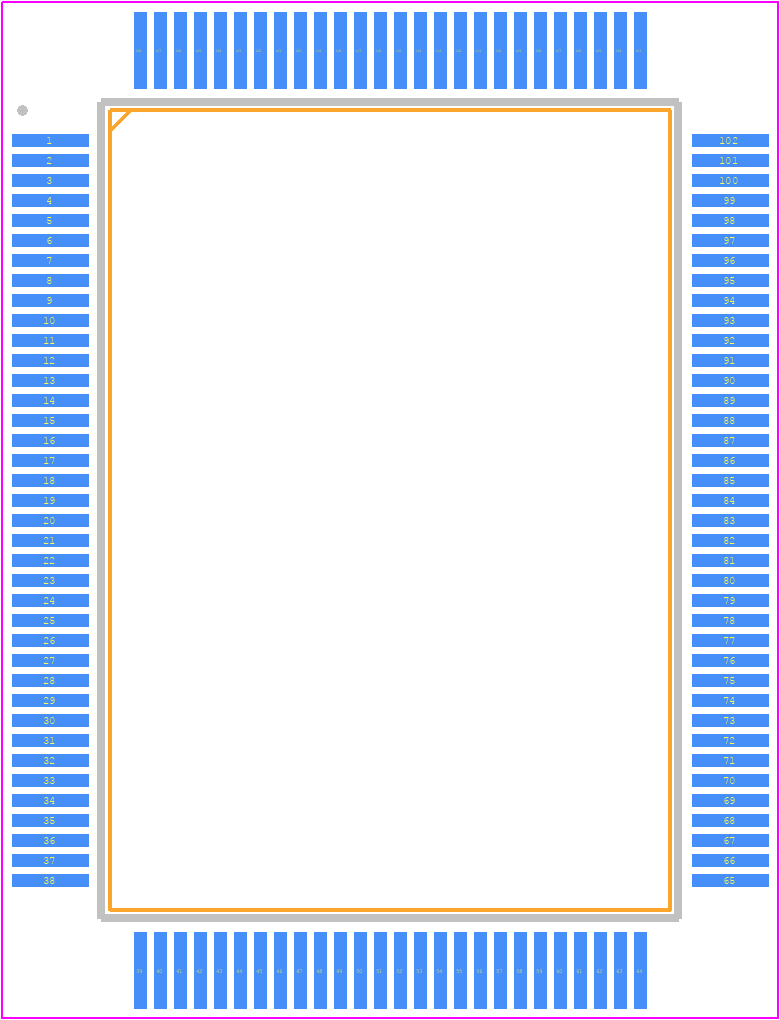

LAN91C111-NS - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - LAN91C111-NS
click to zoom
3D Models
LAN91C111-NS - Microchip  - 3D model - Quad Flat Packages - LAN91C111-NS
click to zoom

LAN91C111-NS Details

  • Manufacturer Part Number:

    LAN91C111-NS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    ROHS COMPLIANT, QFP-128

  • Pin Count:

    128

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    24.92

  • Address Bus Width:

    16

  • Boundary Scan:

    NO

  • Bus Compatibility:

    680X0; 683XX

  • Clock Frequency-Max:

    25 MHz

  • Communication Protocol:

    SYNC, BIT, BYTE, ETHERNET

  • Data Encoding/Decoding Method:

    NRZ; BIPH-LEVEL(MANCHESTER)

  • Data Transfer Rate-Max:

    12.5 MBps

  • External Data Bus Width:

    32

  • JESD-30 Code:

    R-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Serial I/Os:

    4

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP128,.70x.94,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, FINE PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    3.4 mm

  • Supply Current-Max:

    140 mA

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, LAN

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LAN91C111-NS Overview

Use the download button to access the LAN91C111-NS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LAN91, or try a keyword search, such as Serial IO/Communication Controllers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th

Parts related to LAN91C111-NS

Showing 0 results

LAN91C111-NS Alternates

Showing results

Image Part Number Model
Part Image LAN91C111I-NS Microchip Technology Inc

2 CHANNEL(S), 100M bps, LOCAL AREA NETWORK CONTROLLER, PQFP128, ROHS COMPLIANT, QFP-128
