LAN91C111-NS - SMSC

LAN91C111-NS Details

• Manufacturer Part Number:

  LAN91C111-NS

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

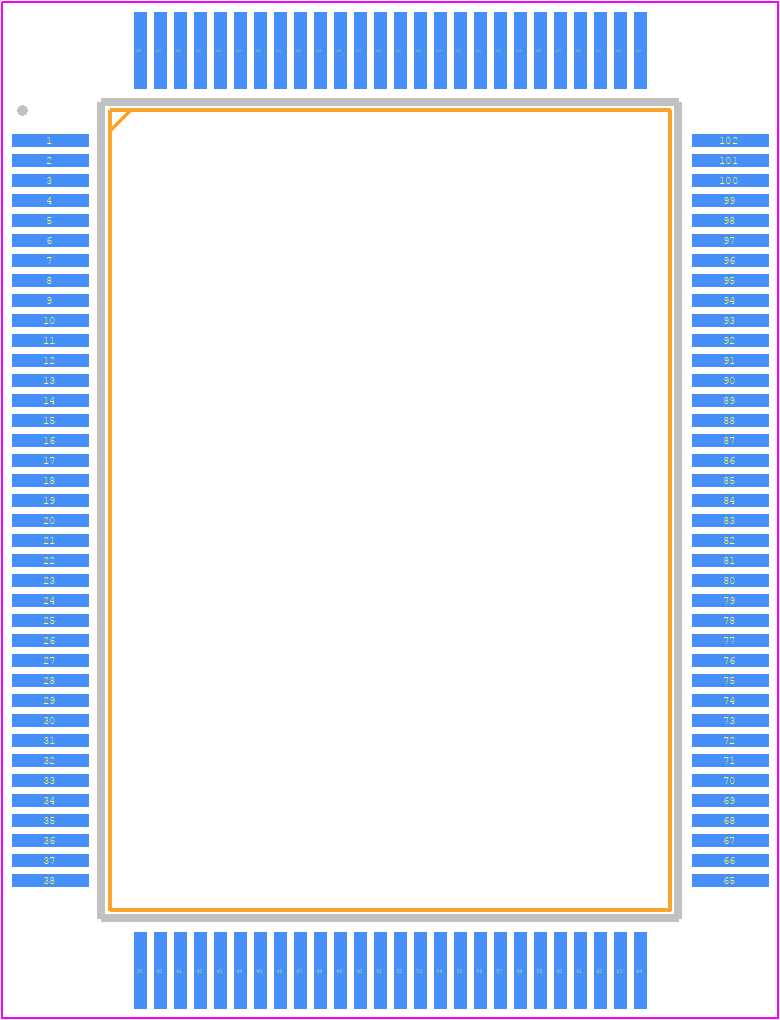

• Part Package Code:

  QFP

• Package Description:

  FQFP, QFP128,.67X.93,20

• Pin Count:

  128

• Reach Compliance Code:

  Compliant

• Manufacturer:

  SMSC

• Address Bus Width:

  16

• Boundary Scan:

  NO

• Bus Compatibility:

  ARM; SH; POWERPC; COLDFIRE; 680X0; 683XX; MIPS R3000

• Clock Frequency-Max:

  25 MHz

• Data Encoding/Decoding Method:

  NRZ; BIPH-LEVEL(MANCHESTER)

• Data Transfer Rate-Max:

  12.5 MBps

• External Data Bus Width:

  32

• JESD-30 Code:

  R-PQFP-G128

• JESD-609 Code:

  e3

• Length:

  20 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of Serial I/Os:

  2

• Number of Terminals:

  128

• Operating Temperature-Max:

  85 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FQFP

• Package Equivalence Code:

  QFP128,.67X.93,20

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Power Supplies:

  3.3 V

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.4 mm

• Subcategory:

  Serial IO/Communication Controllers

• Supply Current-Max:

  140 mA

• Supply Voltage-Max:

  3.63 V

• Supply Voltage-Min:

  2.97 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, LAN
