LAN9250I/PT - Microchip

LAN9250I/PT Details

• Manufacturer Part Number:

  LAN9250I/PT

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  64

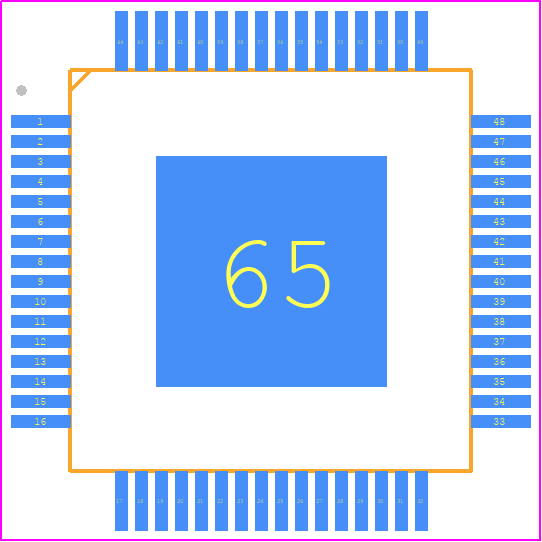

• Manufacturer Package Code:

  TQFP-64

• Country Of Origin:

  Taiwan

• HTS Code:

  8542.31.00.30

• Factory Lead Time:

  8 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  13

• Address Bus Width:

  16

• Boundary Scan:

  YES

• Bus Compatibility:

  I2C; SPI

• Clock Frequency-Max:

  25 MHz

• Communication Protocol:

  ASYNC, BIT; SYNC, BYTE; ETHERNET

• Data Encoding/Decoding Method:

  NRZ; BIPH-LEVEL (MANCHESTER)

• Data Transfer Rate-Max:

  12.5 MBps

• External Data Bus Width:

  16

• JESD-30 Code:

  S-PQFP-G64

• JESD-609 Code:

  e3

• Length:

  10 mm

• Low Power Mode:

  YES

• Number of Serial I/Os:

  2

• Number of Terminals:

  64

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TQFP

• Package Equivalence Code:

  TQFP64,.47SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, THIN PROFILE

• Qualification Status:

  Not Qualified

• Screening Level:

  TS 16949

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max:

  1.26 V

• Supply Voltage-Min:

  1.14 V

• Supply Voltage-Nom:

  1.2 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  10 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, LAN
