Part Image

LAN9646-I/MXX - Microchip

Description: Ethernet Switch IEEE 802.3, 10/100/1000 Base-T/TX PHY I2C, MII, RGMII, RMII, SGMII, SPI Interface 132-DRQFN (11x11) , 1.14V ~ 1.26V, 2.375V ~ 2.625V, 680mA (Typ) , -40°C ~ 85°C (TA)

Download LAN9646-I/MXX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LAN9646-I/MXX - Microchip - PCB symbol
click to zoom
PCB Footprints

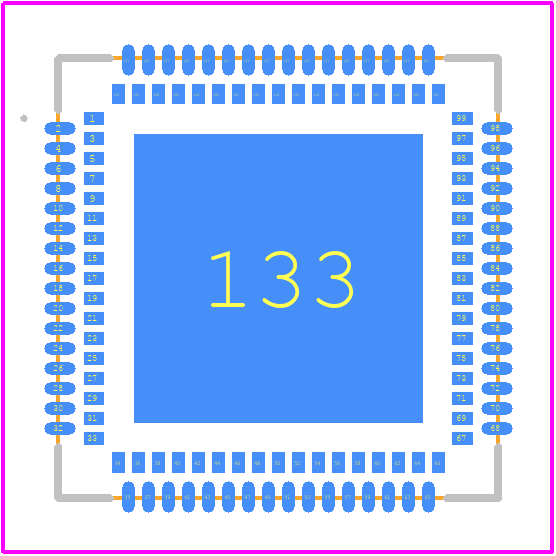

LAN9646-I/MXX - Microchip PCB footprint - Other - Other - 132-Lead Very Thin Plastic Quad Flat, No Lead Package (MXX) - 11x11x0.9 mm Body [DVQFN]; Dual Row, Punch
click to zoom
3D Models
LAN9646-I/MXX - Microchip - 3D model - Other - 132-Lead Very Thin Plastic Quad Flat, No Lead Package (MXX) - 11x11x0.9 mm Body [DVQFN]; Dual Row, Punch
click to zoom

LAN9646-I/MXX Details

  • Manufacturer Part Number:

    LAN9646-I/MXX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DVQFN-132

  • Pin Count:

    132

  • Manufacturer Package Code:

    VQFN-132

  • Country Of Origin:

    Taiwan

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    25

  • JESD-30 Code:

    S-PQCC-N132

  • JESD-609 Code:

    e3

  • Length:

    11 mm

  • Number of Functions:

    1

  • Number of Terminals:

    132

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC132,.43SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    11 mm

LAN9646-I/MXX Frequently Asked Questions (FAQs)

  • The LAN9646-I/MXX supports cable lengths up to 100 meters, as per the IEEE 802.3u standard for Fast Ethernet.
  • Yes, the LAN9646-I/MXX is compatible with 3.3V power supplies. However, it's essential to ensure that the voltage regulator and power supply design meet the recommended operating conditions.
  • The LAN9646-I/MXX can be configured for half-duplex or full-duplex operation through the PHY register settings. Refer to the datasheet and application notes for specific register settings and configuration details.
  • The LAN9646-I/MXX has an operating temperature range of -40°C to +85°C (industrial grade) and 0°C to +70°C (commercial grade).
  • Yes, the LAN9646-I/MXX is a standalone PHY device that can be used with any MCU that supports the MII (Media Independent Interface) or RMII (Reduced Media Independent Interface) interface.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LAN9646-I/MXX Overview

Use the download button to access the LAN9646-I/MXX schematic symbol, PCB footprint, and 3D model.
